Product description:

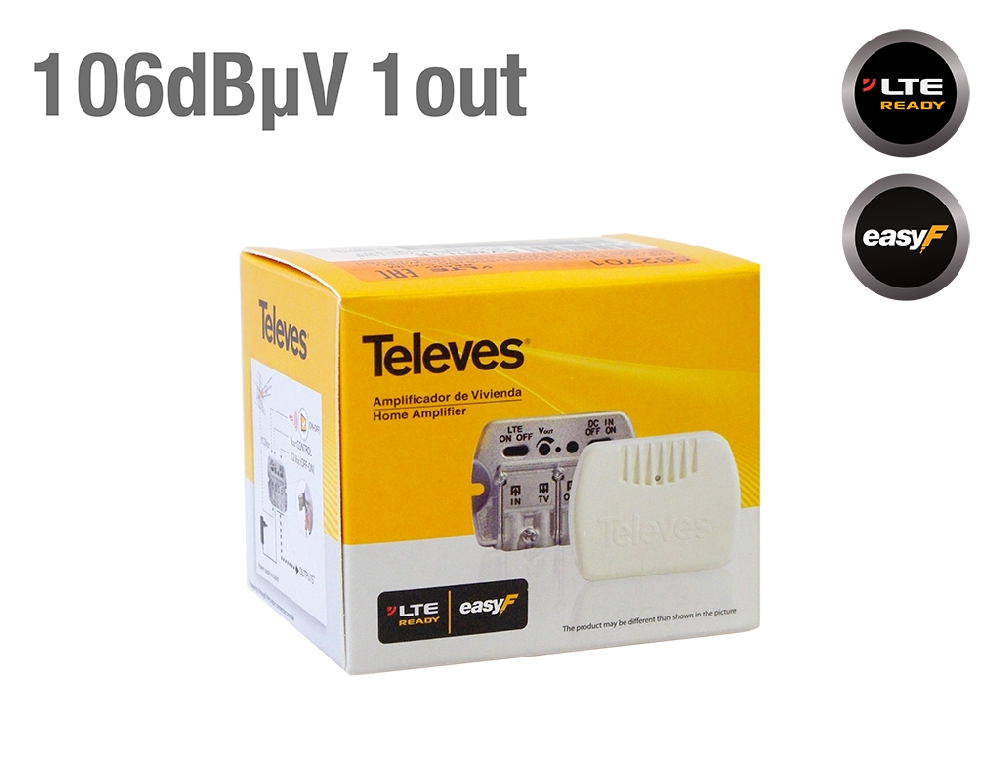

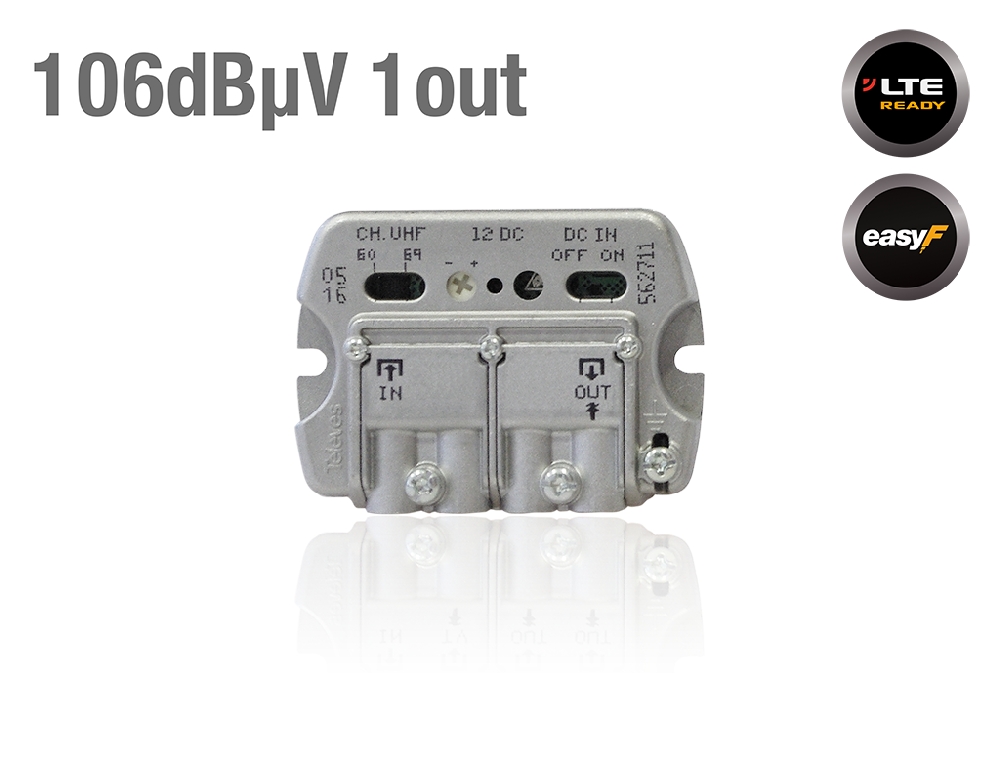

TELEVES 562701 SMATV amplifier NanoKom with 1 input [VHF 46 - 68, 139 - 400 and UHF 470 - 862, 470 - 790 (LTE ON)]. Equipped with 12DC on/off for pre-amplifiers, 1 output and 4G-LTE filter with ON/OFF switch. USOS (User Selectable Output Signal). The user adjusts the required output level and the device will adapt dynamically to the changing received signal. Powerful in technical characteristics and Compact in construction, made of Zamak alloy.
Technical features:
- LTE ON/OFF switch
- Bandwidth:MHZ 46 - 68, 139 - 400, 470 - 862 [790 LTE ON]
- Inputs: 1 VHF-UHF
- Output: 1
- GAIN VHF 13, UHF 26
- USOS (User Selectable Output Signal). The user adjusts the required output level and the device will adapt dynamically to the changing received signal.
- DC ON/OFF switch
- DC 12v on/off for preamplifiers
- Output lenel (DIN 45004B): dB΅V VHF 98, UHF 106
- Noise figure: dB VHF 5.5 UHF 4.5
- Power supply: 196 ··· 264 Vac / 50-60 Hz, Consumption: Vdc/mA 12 / 50
- Ground output
- LED signal presence
- Operating temprature ΊC -5 ··· +45
- IP20
- EasyF connections and extra compact design for ease of installation.
- Dimensions: 68 x 50 x 29 mm
