Product description:

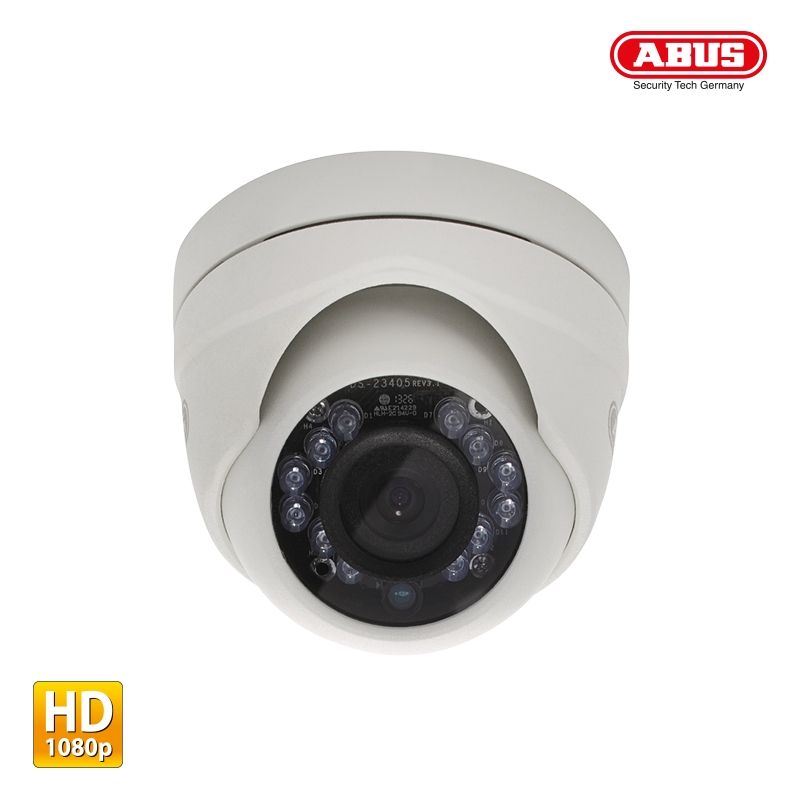

ABUS HDCC32500 Outdoor Analogue HD Mini Dome IR 1080p camera, offers Full High Definition images with a signal transfer range up to a maximum of 300/500 metres. With its 2.8 mm fixed lens and 1/3'' CMOS image sensor, this mini dome camera creates brilliant video image data, which is transmitted in full HD resolution at a range of up to 300 metres (RG59) or 500 metres (RG6) via coaxial cable. Thanks to it's state of the art components, it offers noise-free images and optimal contrast compensation. The 24 integrated infrared LEDs, which have a range of 10 metres, and the 3D DNR function and DWDR function provide noise-free images day or night without extreme backlight contrast. The images can be used for clear identification of individuals or number plates. The simple design and high protection class (IP66) allow for smooth 24/7 operation both indoors and in unsheltered outdoor areas.
Technical features:
- Camera type: Mini dome ABUS HDCC32500 Outdoor Analogue HD IR 1080p camera
- Video system: HD-TVI
- Resolution modes: 1080p pixel
- Image sensor: 1/3'' Progressive Scan CMOS
- Pixels (effective): 1920 x 1080 pixel
- Max. resolution @ frame rate: 1080p @ 25 frames/s (50 Hz) / 1080p @ 30 frames/s (60 Hz)
- Digital zoom: Yes
- Optical zoom: No
- Focal length:2,8 mm
- Horizontal angle of view: 103,5°
- Lens control: AES
- IR LEDs: 24
- IR range: 10 m
- Electronic shutter: 1/50 - 1/50000 s
- Minimum illumination (color): 0,1 Lux
- Minimum illumination (IR): 0 Lux
- Minimum illumination (B/W): 0,01 Lux
- Private zones: 8
- Noise reduction: 2D DNR, 3D DNR
- Functions: Defog, D-Zoom, Smart D-Zoom, DPC, camera title
- Backlight compensation: DWDR, HSBLC, BLC
- Power consumption: 4 W, 340 mA
- Day/night switching: Electromechanical IR cut filter
- Amplifier control: AGC
- White balance: ATW
- Housing material: Metal
- Connections: 1 x BNC (HD-TVI), 1 x BNC (FBAS), 1 x DC (2-Pin)
- Control: ABUS-C (on-screen display, control via coax)
- Camera outputs: 1 x BNC (HD-TVI), 1 x BNC (FBAS, service)
- DC voltage supply: 12, +/-10% V
- IP protection class: 66
- Operating temperature: -20 °C ~ 60 °C
- Max. humidity: 90 %
- OSD language: DE, UK, FR, NL, PL, RU
- Certifications: CE, RoHS, Reach
- Dimensions: (L x W x H) 90 x 84 x 75 mm
- 2-year warranty
Scope of delivery: 1x ABUS HDCC32500 Outdoor Analogue HD Mini Dome IR 1080p camera., 1x Installation tool, 1x Safety information
