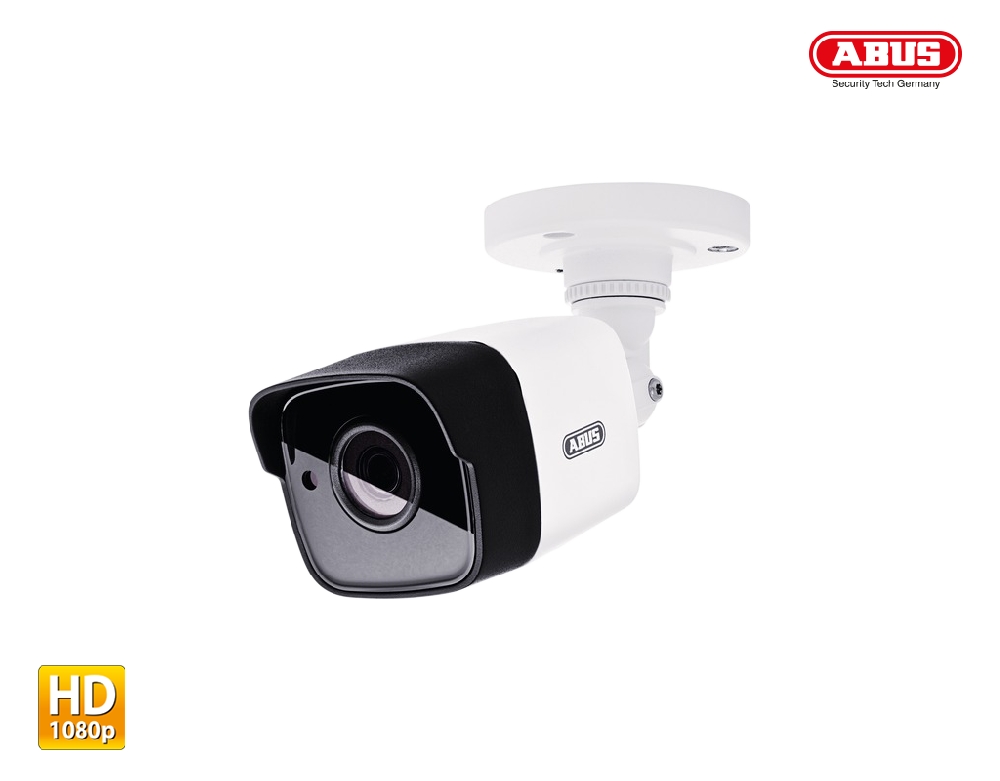

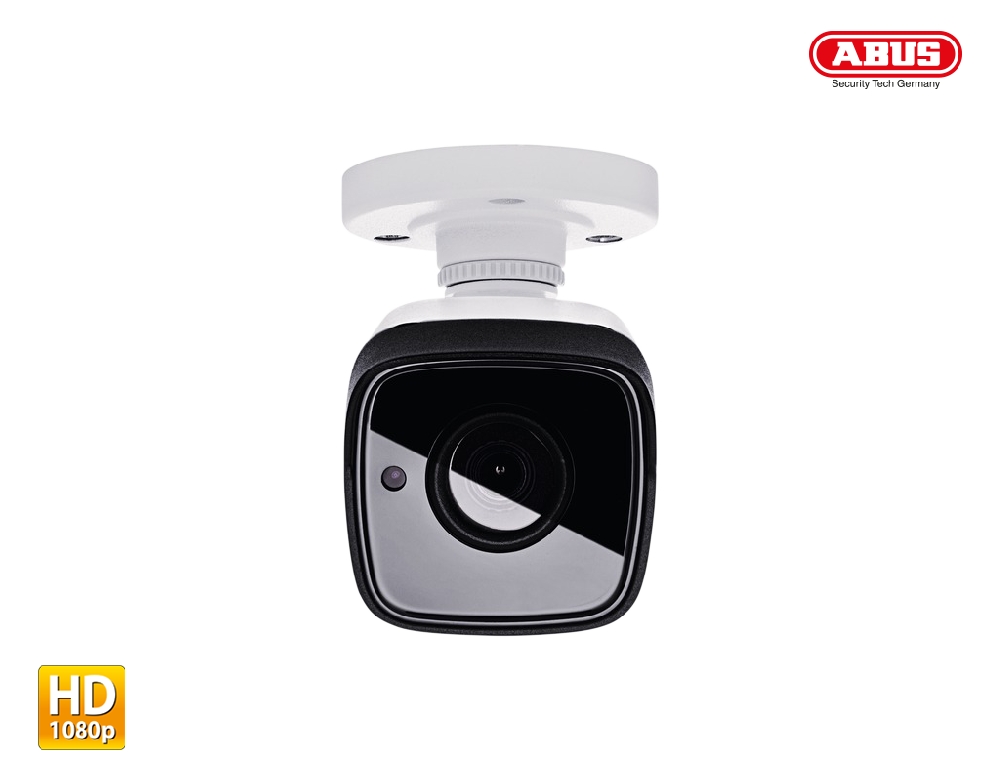

ABUS HDCC43500 Outdoor Analogue HD Mini Tube 3 MPx (1920 x 1536 px @ 18 fps) camera, offers a razor sharp image, 42 % more image data compared to 2 MPx for better detail recognition. Signal transfer range up to a maximum of 300/500 metres. With its 3.6 mm fixed lens and 1/3" CMOS image sensor, this mini dome camera creates brilliant video image data, which is transmitted at a range of up to 300 metres (RG59) or 500 metres (RG6) via coaxial cable. Thanks to it's state of the art components, it offers noise-free images and optimal contrast compensation. The powerful integrated infrared LEDs, which have a range up to 20 metres, and the 3D DNR function and DWDR function provide noise-free images day or night without extreme backlight contrast. The simple design and high protection class (IP67) allow for smooth 24/7 operation both indoors and in unsheltered outdoor areas. Only compatible with ABUS Analogue HD Video Recorder HDCC90001, HDCC90011 and HDCC90021
Technical features:
- Camera type: ABUS HDCC43500 Outdoor Analogue HD Mini Tube 3 MPx (1920 x 1536 px @ 18 fps) camera. Only compatible with Analogue HD Video Recorder HDCC90001, HDCC90011 and HDCC90021.
- Compatible with TVAC31480 Installation box small και TVAC31370 Installation box big.
- Video system: HD-TVI
- Resolution modes: 3MPx (1920 x 1536 @ 18 fps)
- Max. resolution @ frame rate: 1920x1536 @ 18 frames/s (50Hz)/1920x1536 @ 18 frames/s (60Hz)
- Image sensor: 1/3" Progressive Scan CMOS
- Focal length: 3,6 mm
- IR range: up to 20 meters
- Electronic shutter: 1/50 - 1/50000 s
- Minimum illumination (color): 0,1 Lux
- Minimum illumination (IR): 0 Lux
- Minimum illumination (B/W): 0,01 Lux
- Backlight compensation & Image enhancement: True WDR, HSBLC, BLC, ATW, DNR
- Day/night switching: Electromechanical IR cut filter
- Amplifier control: AGC, 4 level
- White balance: ATW, manual
- Housing material: Metal
- Connections: 1 x BNC (HD-TVI), 1 x DC (5.5/2.1 mm)
- Camera outputs: 1 x BNC (HD-TVI)
- DC voltage supply: 12, +/-15% V
- Power consumption: 5 W, 420 mA
- IP protection class: 67
- Operating temperature: -40C ... +60C
- Max. humidity: 90 %
- Certifications: CE, RoHS, Reach
- Dimensions: (L x W x H) 154 x 59 x 56 mm
- 2-year warranty
Scope of delivery: 1x ABUS HDCC43500 Outdoor Analogue HD Mini Tube 3 MPx camera., 1x Installation tool, 1x Safety information, 1 x Drilling template.
