Product description:

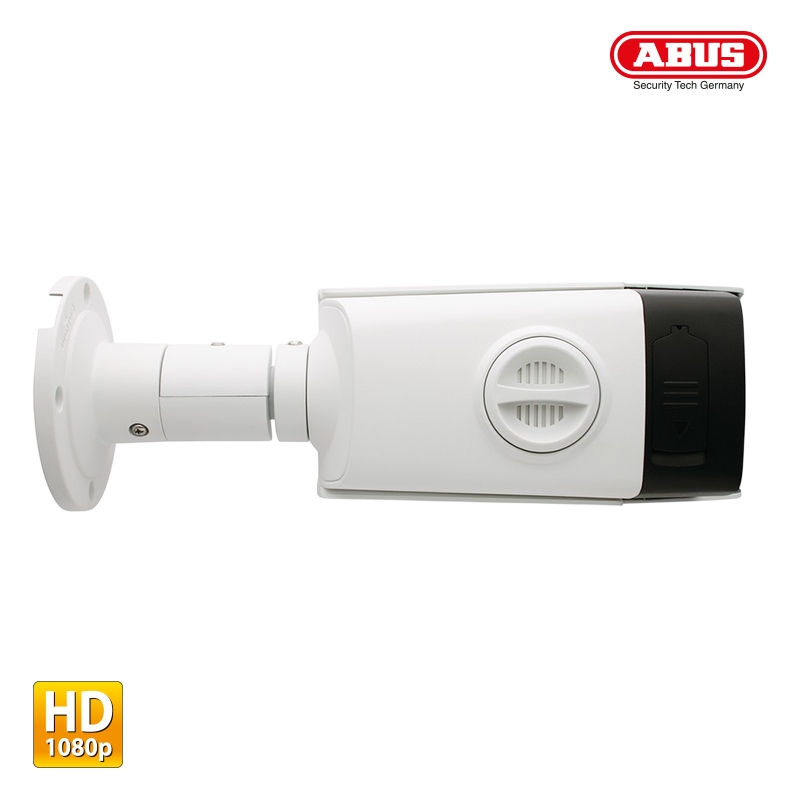

The Full High Definition camera ABUS HDCC62510 Outdoor Analogue HD Tube IR 1080p Vario transmits video image data in 1080p full HD resolution via a coaxial cable up to 500 metres long. It features HD-TVI technology in HD resolution that is quick to install and is the right choice for any application. With a 2.8-12 mm Vario lens, 1/3'' CMOS image sensor and an integrated infrared Power LED, it provides high image quality in all environments, even poorly lit locations and even in complete darkness, both indoors and in sheltered outdoor areas. The sturdy construction (IP66) guarantees that the camera can be used in adverse weather conditions with no problems, making it perfectly suitable for outdoor areas, even without extra weatherproof housing. The cables are completely internal (in the mount) and are thus optimally protected against weather conditions and tampering. Focus, zoom and IR light (intensity/angle) can be set externally, enabling quick installation. The integrated DWDR function compensates differences in contrast and brightness and is therefore suitable for backlight. The 3D DNR function provides noise-free images with optimal dodging.
Main features:
Full HD 1080p resolution: 1920 x 1080 @ 25 fps, Transmission using conventional CCTV infrastructure (coaxial cable up to 500 metres), 1/3'' CMOS image sensor, Vario lens, 2.8-12 mm, with IR Power LED for night vision, up to approx. 50 m range, 3D DNR function for noise-free images, DWDR function to compensate for image contrasts, Weatherproof camera housing and mount with internal cable routing (IP66).
Technical features:
- Camera type: ABUS HDCC62510 Outdoor Analogue HD Tube IR 1080p Vario
- Video system: HD-TVI
- Resolution modes: 1080p pixel
- Image sensor: 1/3 inch progressive scan CMOS
- Pixels (effective): 1920 x 1080 pixel
- Max. resolution @ frame rate: 1080p @ 25 frames/s (50 Hz) / 1080p @ 30 frames/s (60 Hz)
- Digital zoom: Yes
- Focal length: 2.8-12.0 mm
- Horizontal angle of view: 32°-92°
- Lens control: AI
- IR LEDs: 42
- IR range: 50 m
- Electronic shutter: 1/25-1/50000 s
- Minimum illumination (color): 0,1 Lux
- Minimum illumination (IR): 0 Lux
- Minimum illumination (B/W): 0,01 Lux
- Private zones: 8
- Noise reduction: 2D DNR, 3D DNR
- Backlight compensation: DWDR, HSBLC, BLC
- Day/night switching: Electromechanical IR cut filter
- Amplifier control: AGC
- White balance: ATW
- Housing material: Metal
- Connections: 1 x BNC (HD-TVI), 1 x BNC (FBAS), 1 x DC/AC (2-Pin)
- Control: ABUS-C (on-screen display, control via coax)
- Camera outputs: 1 x BNC (HD-TVI), 1 x BNC (FBAS, service)
- AC voltage supply: 24, +/-10% V
- DC voltage supply: 12, +/-10% V
- Power consumption: 800 mA, 10 W
- IP protection class: 66
- Operating temperature: -20 °C ~ 60 °C
- Max. humidity: 90 %
- OSD language: DE, UK, FR, NL, PL, RU
- Certifications: CE, RoHS, REACH
- Dimensions: (L x W x H) 300.8 x 100.8 x 107.6 mm
- 2-year warranty
Scope of delivery: 1x Camera ABUS HDCC62510 Outdoor Analogue HD Tube IR 1080p Vario, 1x Safety information
