Product description:

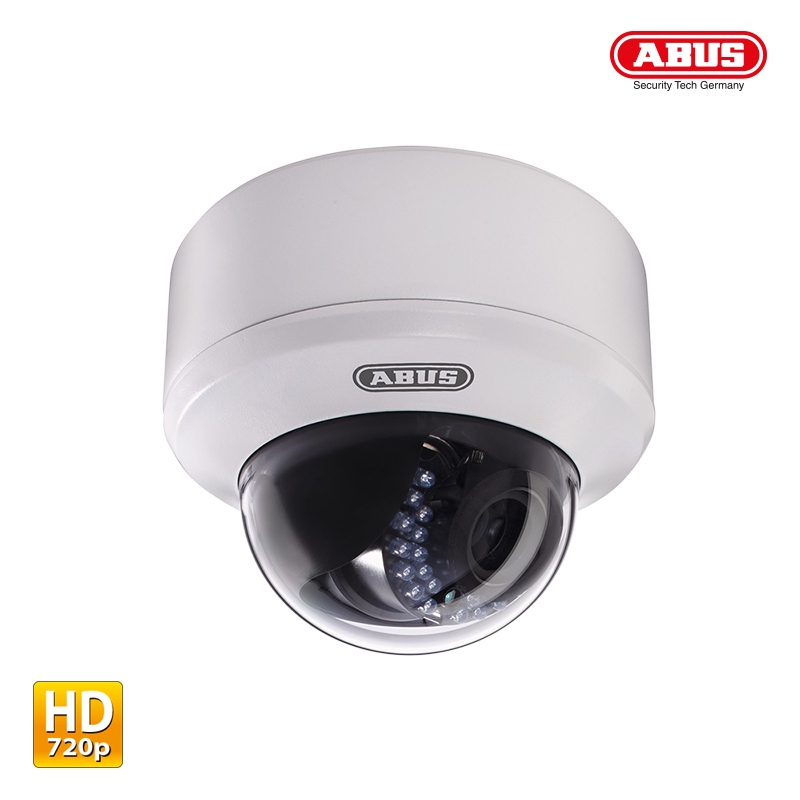

ABUS HDCC71510 Outdoor Analogue HD Dome IR 720p Vario camera has a High Definition video signal transmission range of 500 metres via coaxial cable. With 24 integrated IR LEDs provides detailed, high-resolution images even in darkness and at a range of approx. 20 metres. If a set light intensity is not reached, the colour camera switches to light-sensitive black-and-white mode and the IR LEDs are activated. The 3D DNR function provides noise-free images. The varifocal 2.8-12 mm Vario lens provides and the DWDR function optimises the image contrast so that clear, seamless image results are received regardless of the environment. In both outdoor and indoor areas, day or night, this camera stands out with its simple design and high protection class (IP66), which mean it can be used both outdoors and indoors without an additional weatherproof housing.
Main features:
High Definition: 720p resolution: 1280 x 720 @ 25 fps, Transmission using conventional CCTV infrastructure (coaxial cable RG6 up to 500 metres), Vario lens, 2.8-12 mm, 1/3'' CMOS image sensor, 24 IR LEDs for night vision, up to approx. 20 m range, 3D DNR function for noise-free images, DWDR function to compensate for image contrasts, Weatherproof camera housing (IP66).
Technical features:
- Camera type: ABUS HDCC71510 Outdoor Analogue HD Dome IR 720p Vario
- Video system: HD-TVI
- Resolution modes: 720p pixel
- Image sensor: 1/3 inch progressive scan CMOS
- Pixels (effective): 1280 x 720 pixel
- Max. resolution @ frame rate: 720p @ 25 frames/s (50 Hz) / 720p @ 30 frames/s (60 Hz)
- Digital zoom: (50/60/70/80/90/100) %
- Focal length: 2.8-12.0 mm
- Horizontal angle of view: 28°-78°
- Lens control: AI
- IR LEDs: 24
- IR range: 20 m
- Electronic shutter: 1/50-1/50000 s
- Minimum illumination (color): 0.1 Lux
- Minimum illumination (IR): 0 Lux
- Minimum illumination (B/W): 0.001 Lux
- Private zones: 8
- Noise reduction: 3D DNR
- Backlight compensation: DWDR
- Day/night switching: Electromechanical IR cut filter
- Amplifier control: AGC
- White balance: ATW
- Housing material: Metal
- Connections: 1 x BNC (HD-TVI), 1 x BNC (FBAS), 1 x DC/AC (2-Pin)
- Control: ABUS-C (on-screen display, control via coax)
- Camera outputs: 1 x BNC (HD-TVI), 1 x BNC (FBAS, service)
- AC voltage supply: 24, +/-10% V
- DC voltage supply: 12, +/-10% V
- Power consumption: 5 W, 450 mA
- IP protection class: 66
- Operating temperature: -20 °C ~ 60 °C.
- Max. humidity: 90 %
- OSD language: UK
- Certifications: CE, RoHS, REACH
- Dimensions: (D x H) 143 x 125 mm
- 2-year warranty
Scope of delivery: 1x Camera ABUS HDCC71510 Outdoor Analogue HD Dome IR 720p Vario, 1x Safety information
