Product description:

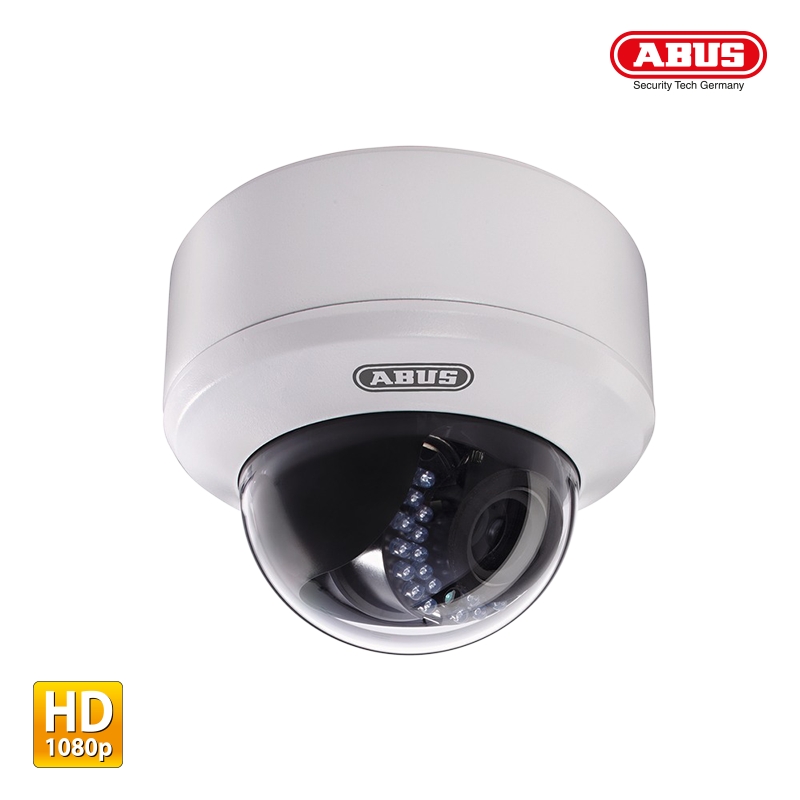

The Full High Definition camera ABUS HDCC72510 Outdoor Analogue HD Dome IR 1080p Vario, projects video images at images in 1080p full HD at maximum transmission range of 500 metres via coaxial cable. 24 integrated IR LEDs provide detail-rich, high-resolution images even in darkness and at a range of approx. 20 metres. If a set light intensity is not reached, the colour camera switches to light-sensitive black-and-white mode and the IR LEDs are activated. Noise-free images with automatic white balance. The 3D DNR function provides noise-free images. The 2.8-12 mm Vario lens is flexible during installation and the DWDR function optimises the image contrast so that clear, seamless image results are achieved regardless of the environment. In both outdoor and indoor areas, day or night, this camera stands out with its simple design and high protection class (IP66), which mean it can be used both outdoors and indoors without an additional weatherproof housing.
Main features:
Full High Definition 1080p resolution: 1920 x 1080 @ 25 fps, Transmission using conventional CCTV infrastructure (RG6 coaxial cable up to 500 metres), Varifocal lens, 2.8-12 mm, 1/3'' CMOS image sensor, 24 IR LEDs for night vision, up to approx. 20 m range, 3D DNR function for noise-free images, DWDR function to compensate for image contrasts, Weatherproof camera housing (IP66).
Technical features:
- Camera type: Full High Definition Outdoor dome camera ABUS HDCC72510 Analogue HD Dome IR 1080p Vario
- Video system: HD-TVI
- Resolution modes: 1080p25, 1080p30
- Image sensor: 1/3 inch progressive scan CMOS
- Pixels (effective): 1920 x 1080 pixel
- Max. resolution @ frame rate: 1080p @ 25 frames/s (50 Hz) / 1080p @ 30 frames/s (60 Hz)
- Digital zoom: Yes
- Focal length: 2.8-12.0 mm
- Horizontal angle of view: 32°-92°
- Lens control: AI
- IR LEDs: 24
- IR range: up to 20 m
- Smart IR: Yes
- Electronic shutter: 1/25-1/50000 s
- Minimum illumination (color): 0.1 Lux
- Minimum illumination (IR): 0 Lux
- Minimum illumination (B/W): 0.001 Luxs
- Private zones: 8
- Noise reduction: 2D DNR, 3D DNR
- Backlight compensation: DWDR, BCL, HSBLC
- Day/night switching:Electromechanical IR cut filter
- Amplifier control: AGC
- White balance: ATW
- Housing material: Metal
- Connections: 1 x BNC (HD-TVI), 1 x BNC (FBAS), 1 x DC/AC (2-Pin), 2-pin (for WDR on/off)
- Control: ABUS-C (on-screen display, control via coax)
- Camera outputs: 1 x BNC (HD-TVI), 1 x BNC (FBAS, service)
- AC voltage supply: 24, +/-10% V
- DC voltage supply: 12, +/-10% V
- Power consumption: Max. 450 mA (max. 5 W)
- IP protection class: 66
- Operating temperature: -20 °C ~ 60 °C.
- Max. humidity: 90 %
- OSD language: DE, UK, FR, NL, PL, RU
- Certifications: CE, RoHS, REACH
-Dimensions: (D x H) 143 x 125 mm
- 2-year warranty
Scope of delivery: 1x Camera Full High Definition Outdoor dome camera ABUS HDCC72510 Analogue HD Dome IR 1080p Vario, 1x Safety information
