Product description:

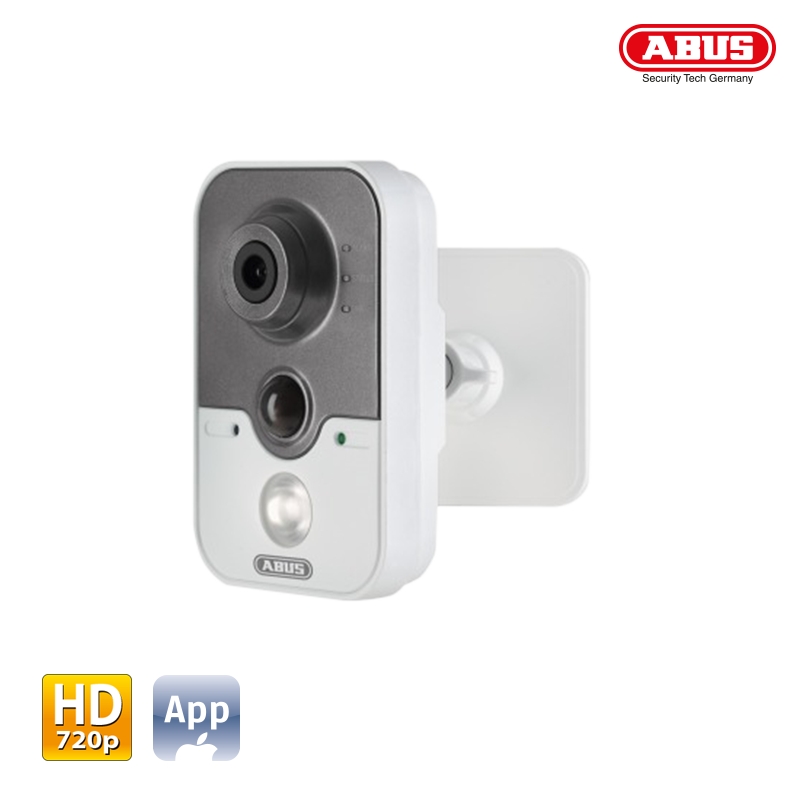

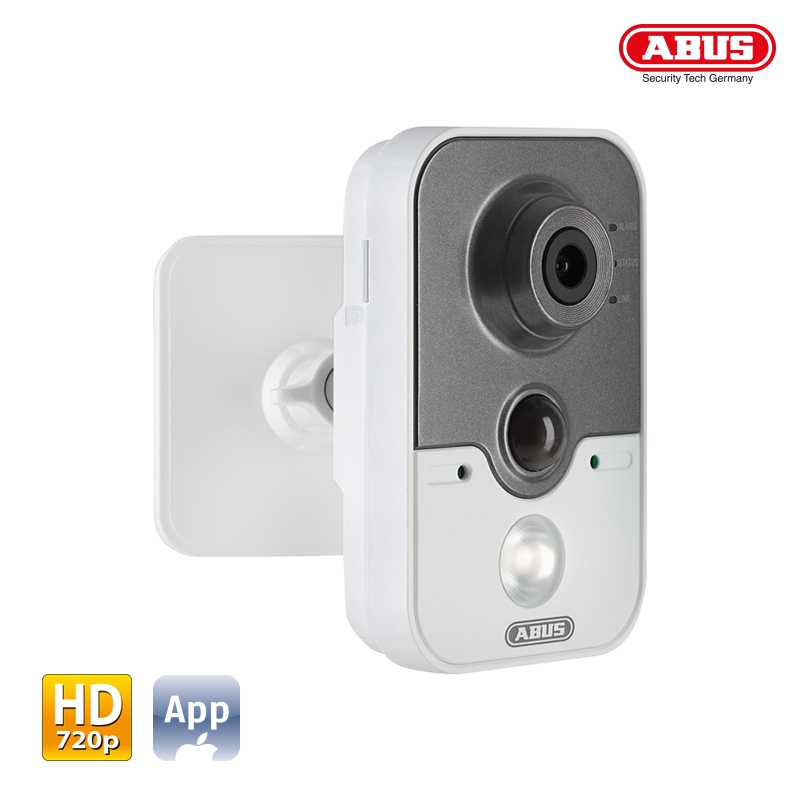

TVIP11560 is a compact day/night WLAN alarm camera for surveillance in indoor areas. It offers detailed high resolution, with 1280 x 720 pixels at 25 frames per second and built-in loudspeaker that can emit a loud tone in the event of an alarm. Also motion detection with passive infrared sensor and Integrated IR LED, activated in the dark. It provides Internet and mobile access to live pictures via IPCam app and browser and images can be sent by e-mail. It has integrated microSD card slot for internal data storage as a back-up solution and an alarm output for an external alarm device (e.g. siren, light). Also, PoE (Power over Ethernet) capability for ease of installation.
IMPORTANT: For this camera model it is only possible to record video image data on the 4-channel NVR TVVR36000 and with VMS Express.
Technical features:
- Camera type: Day/night.
- Day/night switching: ICR.
- Motion detection: 3 zones.
- Relay output: 1.
- Storage medium: microSD (64 GB).
- Microphone: Yes.
- Audio: 64Kbps(G.711)/16Kbps(G.726)/32-128Kbps(MP2L2).
- Alarm input (NO/NC): 1.
- Lens: F2.0, 4.0 mm.
- Electronic shutter: 1/25 s - 1/100,000 s.
- Backlight compensation: Yes.
- Minimum illumination (color): 0.01Lux @(F1.2, AGC).
- Horizontal angle of view: 75,8 °.
- Image sensor: 1/3'' progressive scan CMOS.
- Frame rate: 50Hz: 25fps (1280 sx 960), 25fps (1280 x 720); 60Hz: 30fps (1280 x 960), 30fps (1280 x 720) fps.
- Resolution modes: 1280 x 960; 1280 x 720 pixel.
- Max. resolution @ frame rate: 1280 Χ 720 @ 30 fps.
- PIR range: max. 10 m.
- White balance: Yes .
- ONVIF: Profile S.
- Software: ABUS VMS, Internet Explorer 6, Safari, Mozilla Firefox.
- LAN network access: RJ45.
- WLAN network access: 802.11 b/g/n.
- Alarming: E-Mail.
- Number of users: 6.
- Number of streams: 2.
- Supported browsers: Internet Explorer 6, Safari, Mozilla Firefox, Google Chrome.
- Encryption: HTTPS SSLv3, WEP 64/128bit, WPA/WPA2-PSK.
- Video compression: H.264, MJPEG.
- Pre-alarm/post-alarm memory: Yes.
- Power consumption: 5 W 450 mA.
- Max. operating temperature: +50 °C.
- Min. operating temperature: -10 °C.
- IP protection class: 34.
- DC voltage supply: 12 V.
- Dimensions: 66 x 71 x 139 mm.
- 2-year warranty
Scope of delivery:
1x Network camera.
1x Power supply unit.
1x 1-meter network cable.
1x VMS Express Software.
1x Installation CD.
1x User guide (on CD).
1x Quickstart manual.
1x Wall/ceiling mount incl. installation material.
