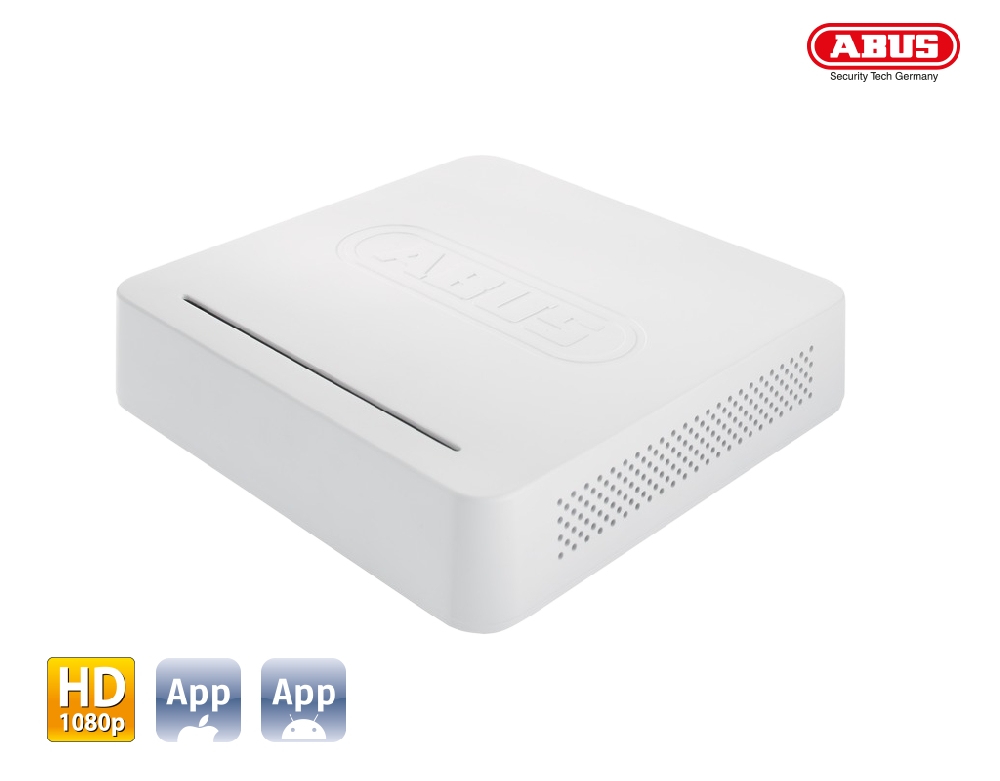

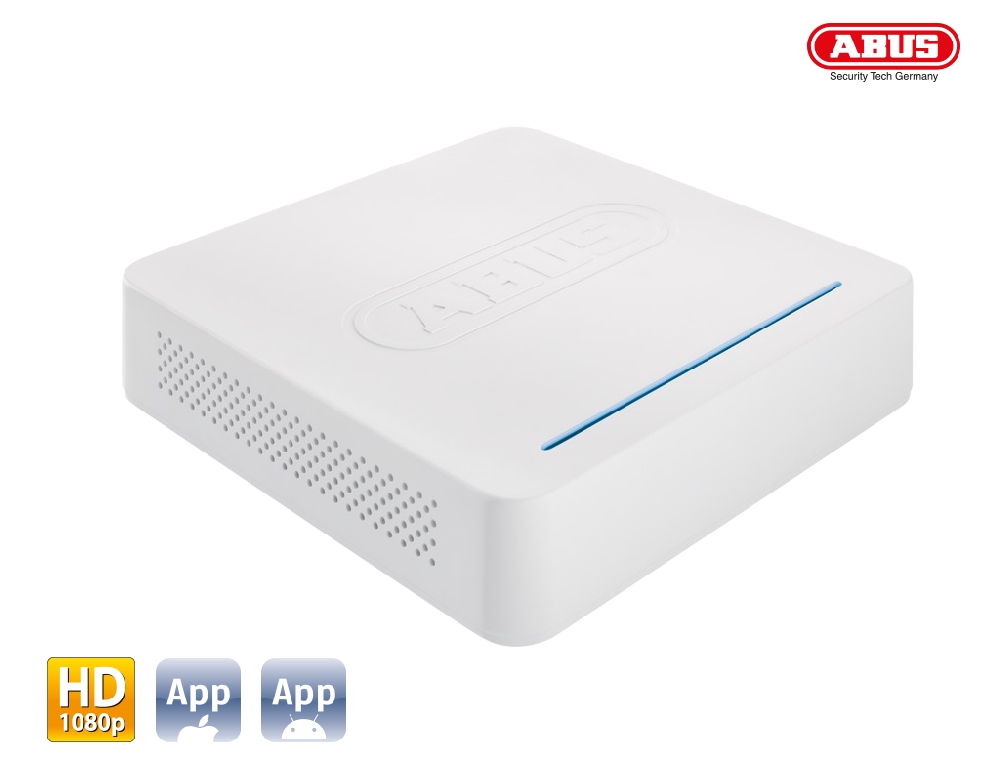

ABUS TVVR33004 is a 4-channel video recorder for individual configuration. Provides Live display and recording in real-time and in HD resolution (720p), Simple and intuitive operation using a mouse, Recording via motion detection, following a time schedule or continuously, Saves data to 2.5'' hard disk drive (hard disk drive not included). The Recorder is compatible with analogue HD and analogue cameras and has Mobile access via the ABUS iDVR app. It is Full HD Ready (1080p): Recording and playback with 12 frames per second and has simple connection of cameras using a standard coaxial cable (BNC connector), making it ideal for upgrading old analogue systems to HD or full HD resolution. This analogue HD digital recorder is for up to 4 analogue HD cameras, which are connected to the recorder via analogue video cable. The saved data can be accessed as desired via app and web. Thanks to the hybrid function, modern analogue HD cameras (HD-TVI standard) and tried-and-tested analogue cameras can be used together in one system. The recorder is also Full HD-ready and can record and play back image data with 1080p resolution at 12 frames per second. The digital recorder is easy to operate via mouse and offers three different recording modes: after motion detection, according to a stored schedule or continuous recording. The free ABUS iDVR mobile app can also be used at any time and from anywhere to access the recorder, live images and recordings. Easy commissioning, the cameras are easily connected to the BNC interfaces on the recorder via standard coaxial cables. The recorder can be started up immediately without any complicated setup or programming. Required accessory: one 2.5'' SATA hard disk drive. An ABUS IP camera can also be integrated via the router.
Technical features:
- Analog/HD-TVI video channels: 4
- IP video channels: 1
- Total video channels: 5
- Total frame rate: 125
- Camera inputs: 4 x analogue HD/analogue
- Video compression: H.264
- Live view resolution: 1920*1080/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz TVL
- Recording modes: Manual, time schedule, motion detection, alarm
- Recording resolution @ frame rate per camera: 1920 x 1080 @ 12,5 fps, 1280 x 720 @ 25 fps, 640 x 480 @ 25 fps, 704 x 576 @ 25 fps, 352 x 288 @ 25 fps
- Web server: Yes
- Operating mode: triplex
- DDNS: Yes
- NTP: Yes
- Hybrid-enabled: Yes
- Compression levels: 6
- Pre-alarm/post-alarm memory: 0-30 / 5-900 sec.
- Search modes: By event, date and time, S.M.A.R.T.
- Alarming: Acoustic warning, OSD signal, email, CMS
- User levels: 2
- Views: 1 / 4 / 6 / 8 / 9
- Network access: 1 x RJ45 10/100 Mbps
- Network functions: Live view, playback, data export
- Total network throughput (input/output): 72 Mbits
- Simultaneous network access: 128 camera connections
- OSD language: English, German, French, Dutch, Danish, Italian, Polish, Spanish, Swedish
- Control: USB mouse
- Storage medium: 1 x 2,5'' SATA HDD (not included)
- Storage: 2 x USB 2.0

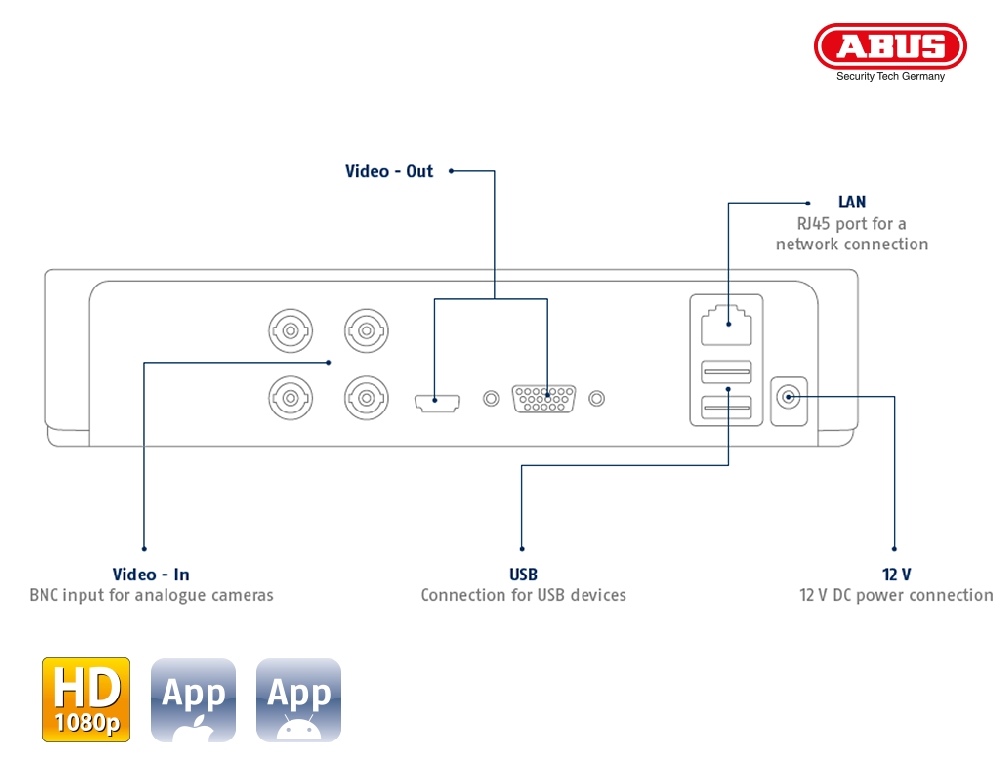

- Monitor outputs: 1 x HDMI, 1 x VGA
- Power consumption: 15 W, 1.250 mA
- DC voltage supply: 12 V
- Operating temperature: -10 °C - 55 °C
- Dimensions: 200 X 50 X 200 mm (L X H X W)
- Certifications: CE, REACH, Law Sargozy, C-Tick
- Warranty: 2 years
Scope of delivery:
- 1 x 4-Channel Analogue HD Video Recorder
- 1 x 1 m network cable
- 2 x hard drive cable
- 4 x screws for hard drive
- 1 x Power supply unit
- 1 x USB mouse
- 1 x Quick guide
- 1 x Manual
- 1 x CD
