Product description:

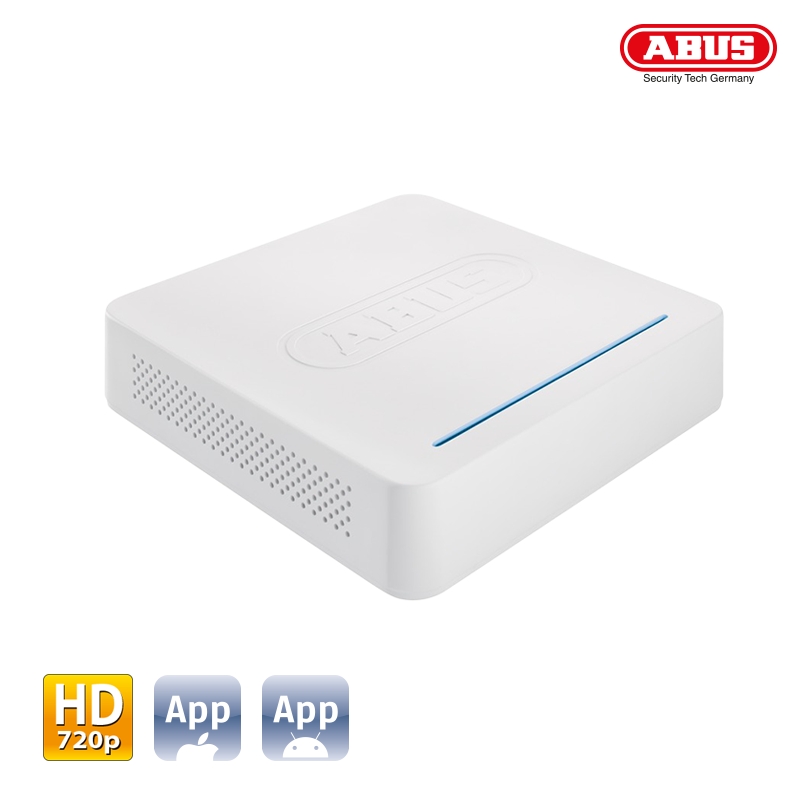

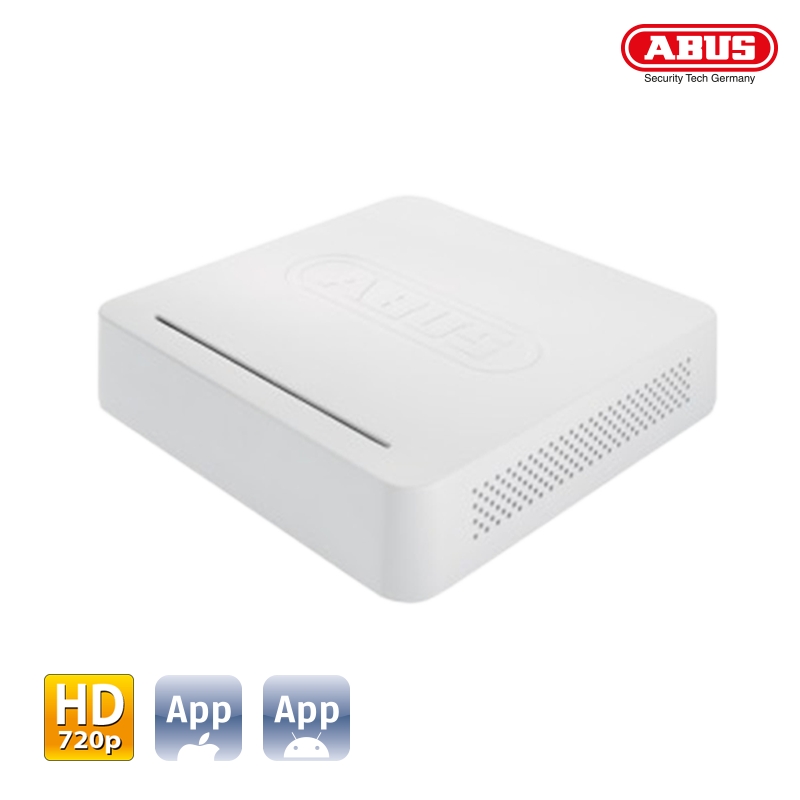

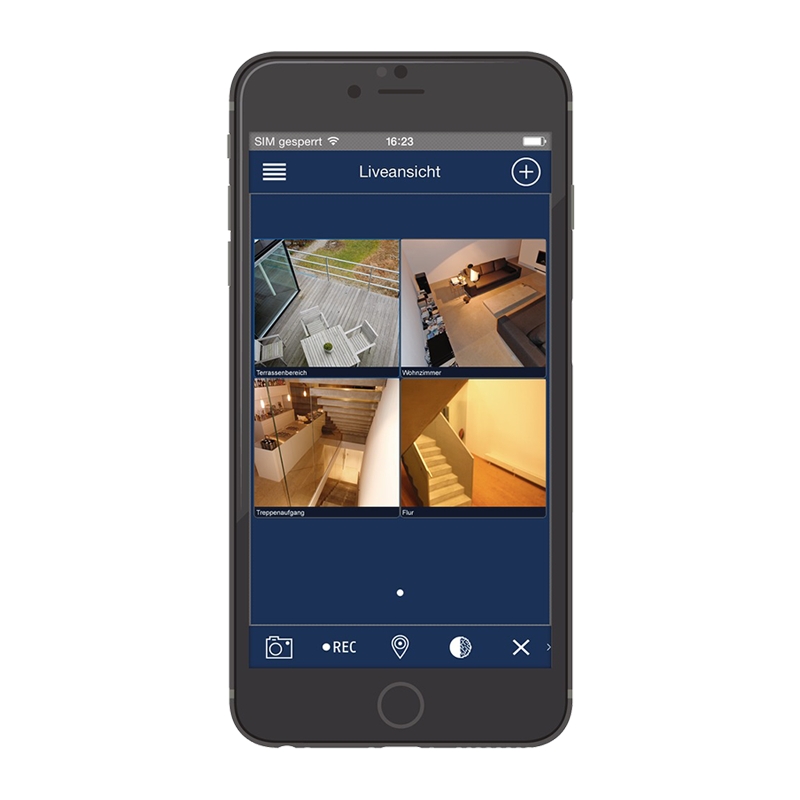

TVVR36000 is a 4-Channel Network Digital Recorder. Saves data to 2.5'' hard disk drive hard disk drive not included). Simple and intuitive mouse operation. With 4 PoE (Power over Ethernet) interfaces for fast and easy commissioning of selected ABUS network cameras.Simultaneous administration of six 720p IP cameras (4 x PoE +2). Recording triggered by motion detection, schedule or permanent. Mobile access via ABUS iDVR app.
ABUS recommends the following cameras for this recorder:
- TVIP11560 (PoE-enabled)
- TVIP61500 (PoE-enabled)
- TVIP41500 (PoE-enabled)
- TVIP61550 (not PoE-enabled)
IMPORTANT:The recorder is not compatible with the ABUS CMS software. For 24/7 use we recommended the following 500 GB hard disk drive.
Technical features:
- Total network throughput (input/output): (40/50) Mbits
- ONVIF: Profile S
- Alarm: Acoustic warning signal, OSD signal, e-mail.
- Screen views: 1 / 4 / 6
- Audio: Line In: 1 x Cinch (2,0 V p-p, 1000 Ω), Audio Out: 1 x Cinch (600 Ω)
- Recording resolution @ frame rate per camera (PAL): 6 x 720p @ 6 MBit/s
- Live view resolution: HDMI: 1920 x 1080 / 60Hz (1080p), 1600 Χ 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz - VGA: 1920 x 1080 / 60Hz (1080p),1600 Χ 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz - BNC Output: PAL: 704 Χ 576 (4CIF), NTSC: 704 Χ 480 (4CIF)
- Recording modes: Manual, schedule, motion detection, alarm, motion detection and alarm, motion detection or alarm.
- User levels: 2 (max. 31 users)
- Operating mode: Triplex
- Storage: 2 x USB 2.0
- DDNS: Yes
- Simultaneous network
- Access: 128 camera connections
- Hybrid-enabled: No
- Power consumption: < 10 W
- Max. operating temperature: 50 °C
- Min. operating temperature: -10 °C

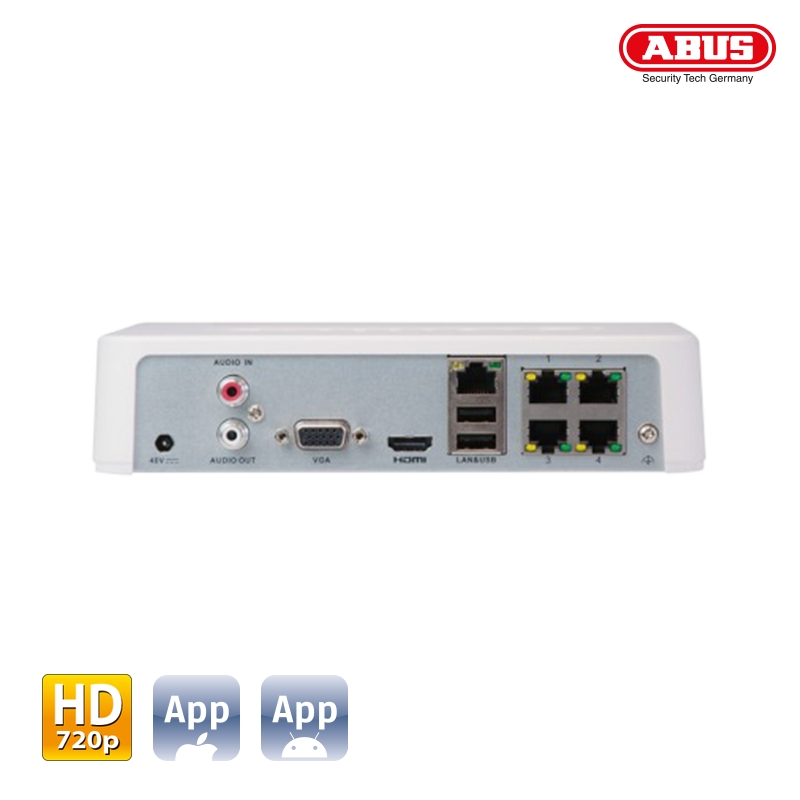

- Monitor outputs: HDMI, VGA
- Net weight: 0.8 kg
- Network access: 1 x RJ45 10/100 Mbps
- Network functions: Live view, playback, data export,
- Network cameras: ABUS network cameras
- NTP: Yes
- Relay output: No
- Software: ABUS CMS Software
- DC voltage supply: 48 V
- Storage medium: 1 x 2,5''SATA HDD
- OSD language: DE, UK, FR, NL, DK. PL, RU, SWE, IT, ES
- Control: Mouse
- Search modes: By event, date and time, smart search
- Analog video channels: 0
- Total video channels: 6
- HD-SDI video channels: 0
- IP video channels: 6
- Pre-alarm/post-alarm memory: 0 - 900 / 5 - 900 s
- Certifications: CE
- Dimensions: 200 x 45 x 200 mm (W x H x D) mm
- 2-year warranty
Scope of delivery:
1x Power supply unit
1x USB mouse
2x Hard drive cable
1x screws for hard drives
1x CD-ROM
1x User manual
1x Quickguide
