The adjustable base ELB-2355/TILT JollyLine WALL TV MOUNT 23-55 Tilt 45kg, is intended for mounting a television or screen from 23 to 55 inches and weighing up to 45 kg, on a vertical surface of an indoor space. The functional design also helps to maintain the aesthetics of the point, offering concealment of the TV cable routing, in the section behind the base. With only 5.3 cm distance from the wall, it is ideal for areas such as kitchens and bedrooms. The item is intended for installation and intervention, only by specialized technical personnel. The support surface must meet the support requirements based on the specifications and characteristics of the base and the devices it supports. The item is intended for installation and use indoors only.
Technical features:

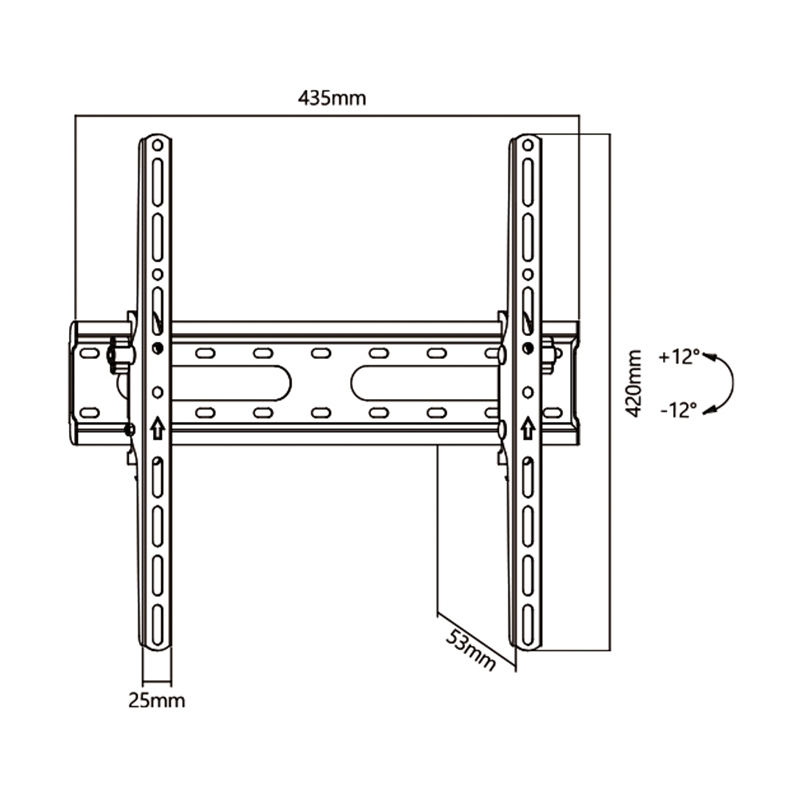

- VESA dimensions (mounting positions behind TV) up to 400x400 mm
- Compatible screen sizes (23 to 55 inches / 58.42 to 139.7 cm)
- Maximum load up to 45 kg
- Distance from the wall: 5.3 cm
- Horizontal adjustment: -
- Vertical adjustment: +-12 degrees angle
- Components 2
- Arms: -
- Color: Black
- Material: Metal
- Packaging dimensions W: 45 cm, H: 11 cm, D: 5 cm
- Manufacturer Code: JL42807 / ELB-2355/TILT
- Packing: Giftbox
