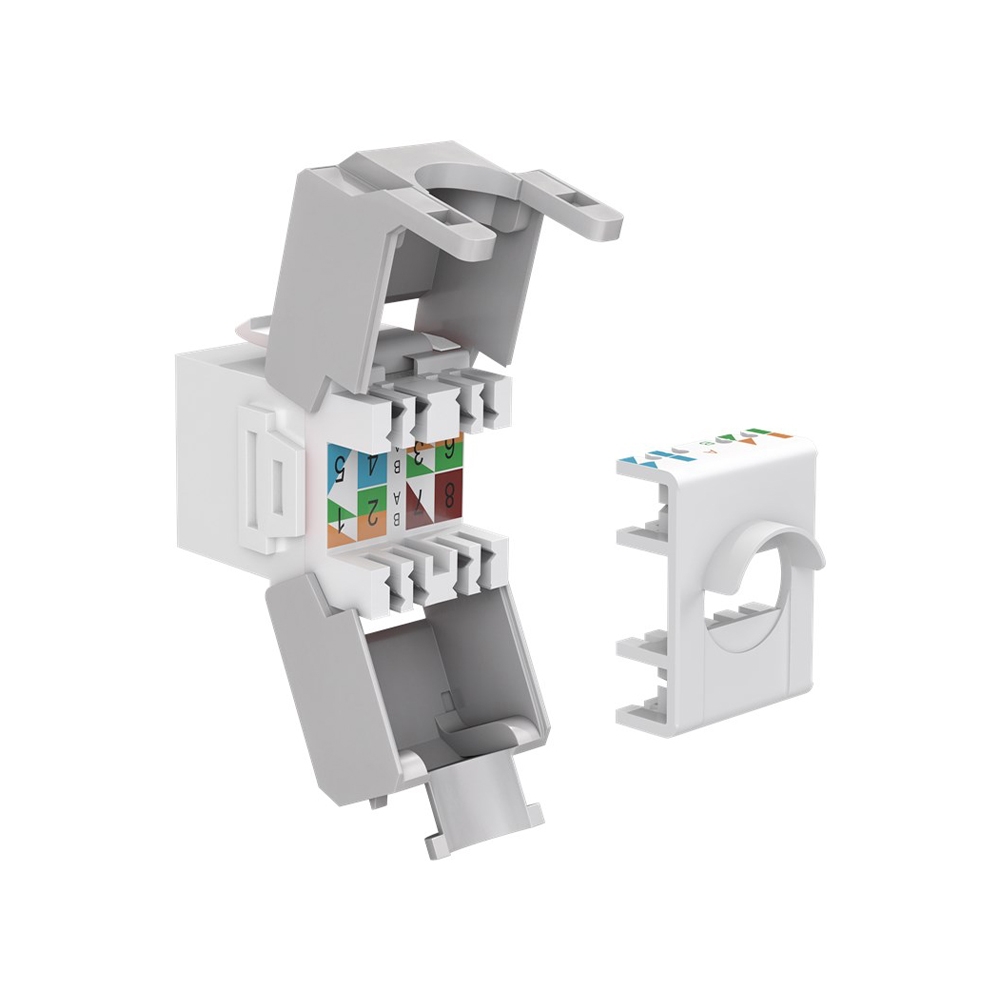

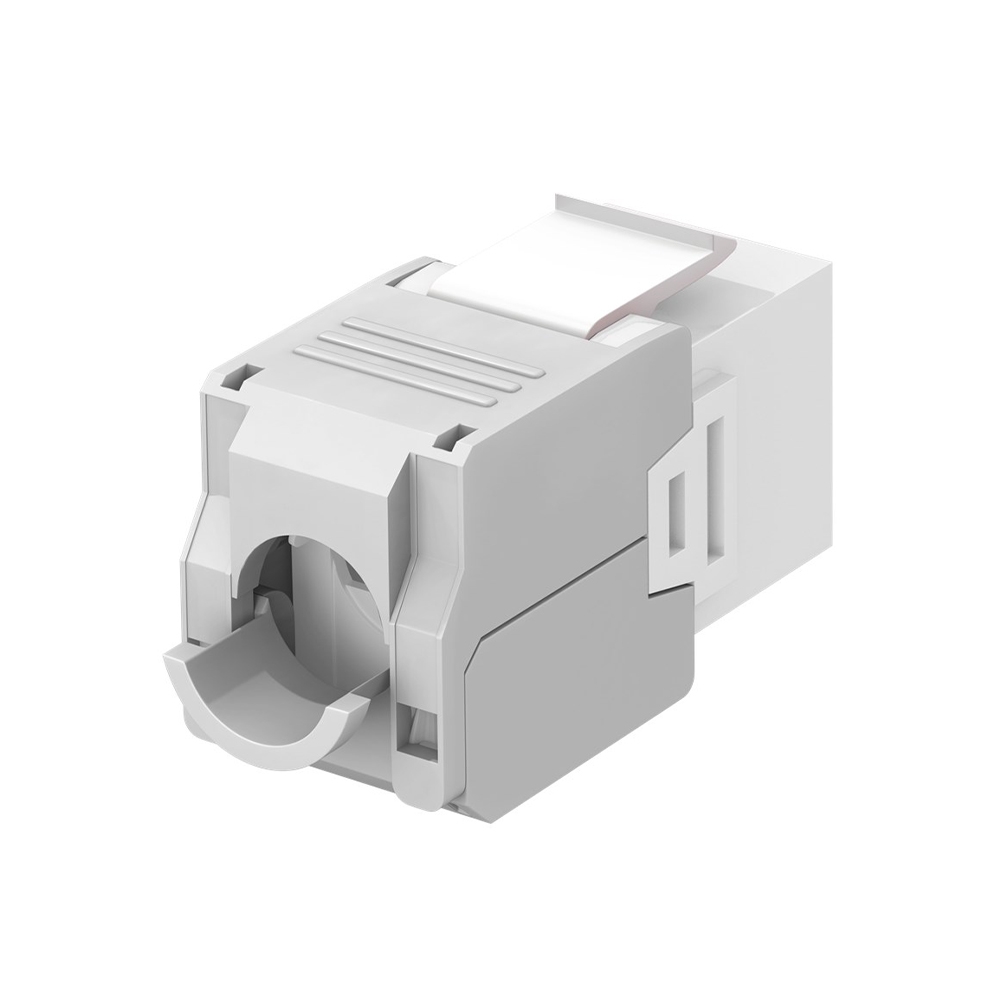

The 90867 Keystone Jack RJ45 UTP Cat.6A Female 180° Tool-Free white, is a keystone module RJ45 CAT 6A, UTP, 16.5 mm wide, crocodile type, terminal strip for tool-free IDC mounting. It features RJ45 jack socket with robust plastic housing for a perfect transmission of electrical or optical signals, with CAT 6A jack socket for Ethernet cables with an outer diameter of 5.0 - 9.0 mm. The modul is also suitable for Power over Ethernet (PoE+) according to IEEE 802.3at and it is compatible with RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings. Main applications are in laboratories and workshops, as well as in advanced home entertainment and network installations. The Ethernet connector is for termination of solid wires of 0.48 - 0.65 mm (AWG 22 - 26). Additionally, its RJ45 connections are TIA 568A/B colour-coded and it is PoE and PoE Plus according to IEEE802.3at.
Technical features:
- Specification CAT 6A, UTP, tool-free IDC mounting
- RJ45 female (8P8C), 16.5 mm wide, 180° cable outlet, crocodile type
- TIA-568 A/B pinout
- PoE and PoE Plus according to IEEE802.3at: Yes
- Shielding: UTP
- Outer diameter cable: 5.0 mm - 9.0 mm
- Rated voltage: 125 V, Rated current: 1.5 A
- Contact resistance: 100 mO max.
- Insulation resistance: 1000 MO min. @ 500 V
- Resistance voltage: 750 V RMS, 60 Hz, 1 min
- Bandwidth: 500 MHz
- AWG 22-26
- Solid cable: 1/22 AWG (0.65 mm) - 1/26 AWG (0.48 mm)
- Outer diameter cable: O 5.0 mm - 9.0 mm
- Operating temperature: -20°C ~ +85°C
- Storage temperature: -40°C ~ +60°C
- Housing material: Plastic
- Contact material: Phosphor bronze
- Color: White+Light gray
- Dimensions: 16.5 (W) mm
Packaging:
- Per 10 pieces
