149740 DAT-75 T-FORCE LTE HD BOSS LR
Product Code:
12-00-0016
  • Manufacturer:
    TELEVES
  • Barcode:
    8424450185377
  • Pieces per package:
    1
  • Pieces per pallet:
    30
  • Net weight:
    3.29 kg
  • Gross weight:
    4.07 kg
  • Dimensions per package:
    102x42x14
  • Uploaded on:
    11-12-2017
  • The product was removed:
    14-07-2021

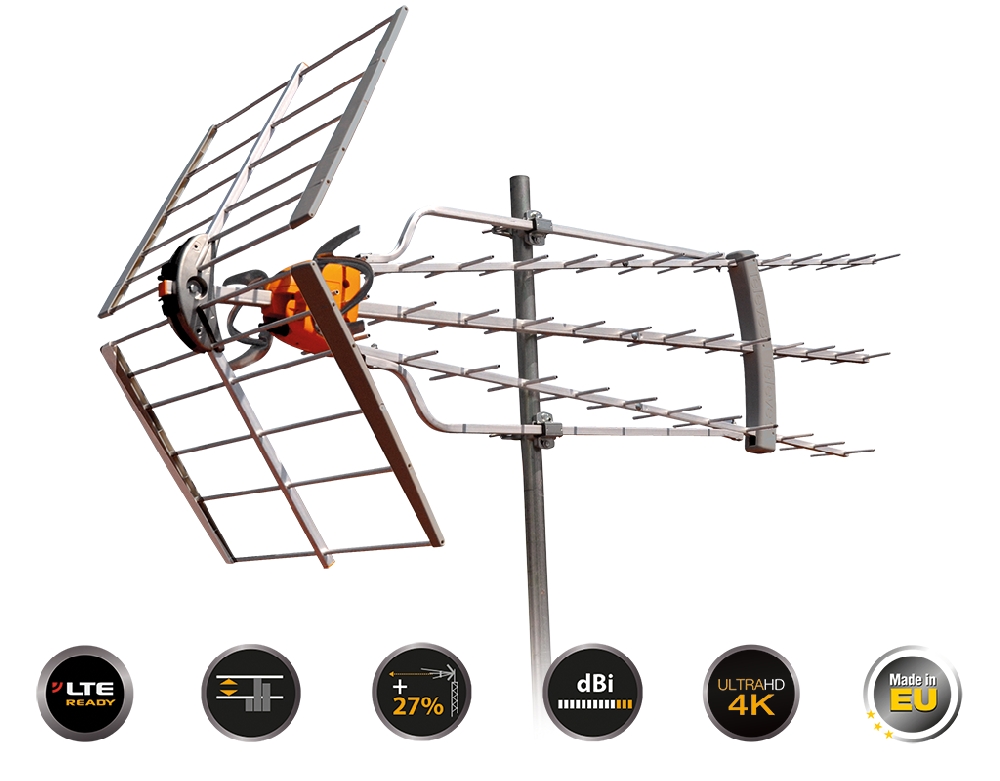

Televes T-Force technology utilizing a new era in electronics manufacturing makes possible the introduction of Televes DAT-75 TFORCE 790 LTE HD B.O.S.S. LR antenna. The DAT T-Force antenna is designed to function either in automatic or passive mode. Provided with DC 12-24v it offers exceptional wide dynamic range coverage, with B.O.S.S. technology and gain up to 47db*! Do not worry about signal strength, just align the antenna and the BOSS-Tech device will automatically adjust the output signal to the optimum level (*). With Televes T-Force technology for excellent dynamic range, combined with A.G.C..Whether in automatic or passive mode, the DAT HD antenna offers exclusive functionality to maximise the reception of the DTT, while filtering the 4G-LTE signal from 790 MHz and above. (*): The automatic mode is activated with a 12-24 Vdc. power supply unit not supplied.

Technical features:

- Passive and Active function
- Band: UHF
- Gain (passive): 19dB
- Gain (active) : 47dB* max
- Output Level (active only): Self-regulating
- Noise figure (active only): 2dB
- Recommended signal level (passive): >75 dBμV
- Recommended signal level (active) : <75 dBμV
- Powering (active): 12-24 Vcc
- Consumption (active): 40 mA
- Beamwidth: 27
- Windload: 141N (@ 130 Km/h), 194N (@ 150 Km/h)
