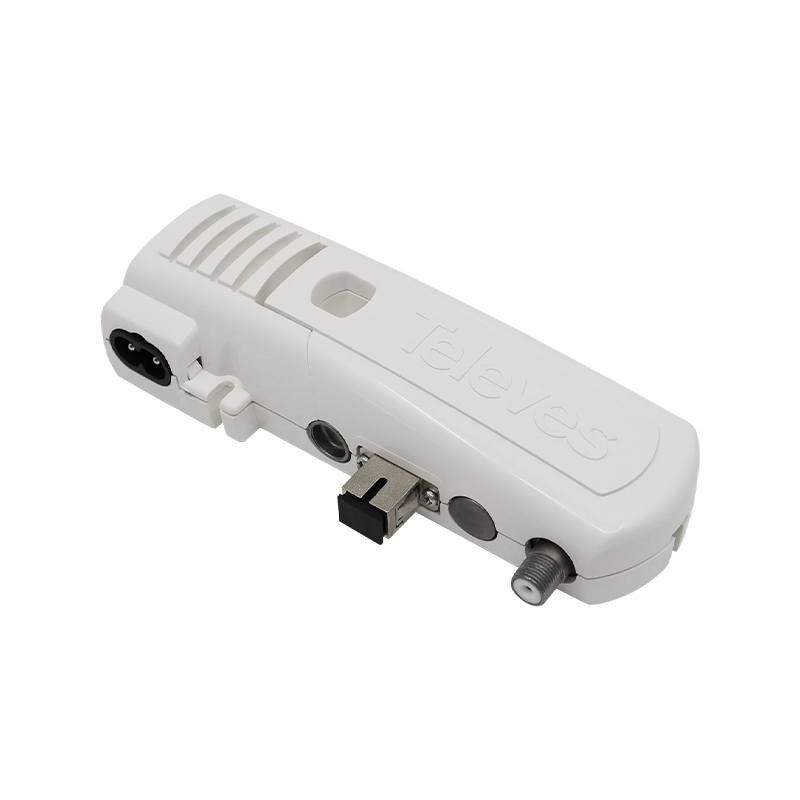

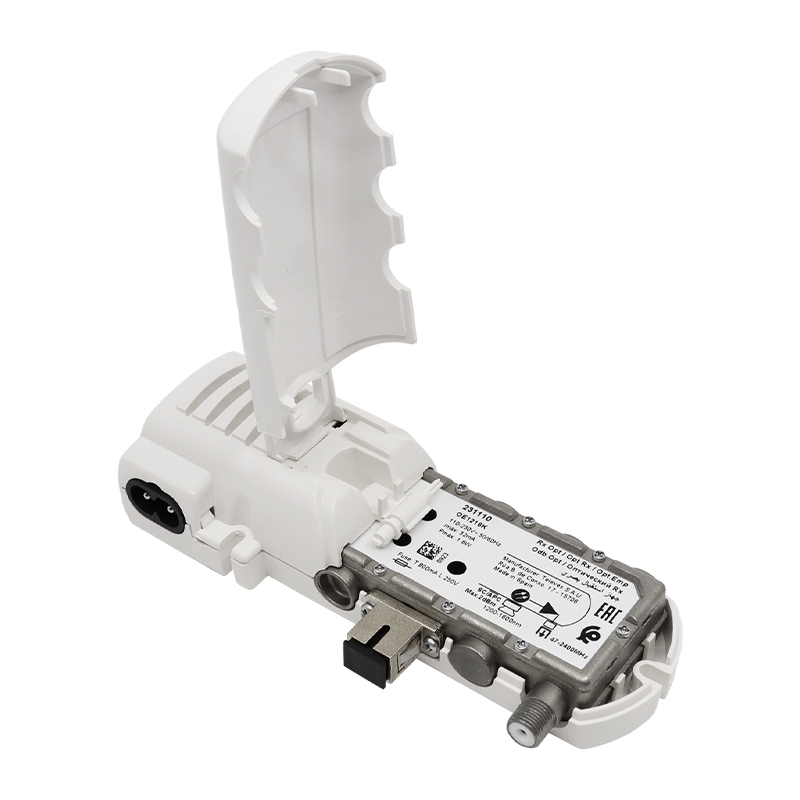

The TELEVES 231110 Optical RX 47-2400MHz 1200-1600nm SC/APC OLC, is a home category Fiber Optic to RF converter, with a constant power level supply, regardless of the attenuation of the fiber optic network. This home FTTH receiver, manufactured entirely by Televes, was designed to facilitate the installer. It converts the fiber optic signal to RF, with self-adjusting output power for optimal performance. In addition, it has a compact and discreet size, easy to install in 20 X 10 cm boxes. With O.L.C. technology (Optical Level Control) automatically adjusts parameters to achieve a constant output level, regardless of channel load.
OPTICAL FIBER INPUT
- Optical fiber device type: InGaAs pin photodiode
- Wavelength nm: 1200...1600
- Maximum dBm level: 2
- Minimum dBm level: -10
- Bandwidth MHz: 1 - 3000
- Optical fiber input power range dBm: -13 ~ +2
- Optical fiber return loss dB: > 40
- O.L.C. range dBm: -8 ... -1
- Equipped with LED optical signal power indicator.
RF OUTPUT
- Frequency range MHz: 47 ... 1006
- C/N, dB: > 51
- Impedance ohm: 75
- Output return loss dB: ? 11
- Optical AGC operating range dB: 0 ...18
- RF output power level: Self-adjusting for 41 channels at 80 dBμV.
- Gain dB: Self-adjusting
GENERAL
- Vac power supply: 230 ± 30%. Switch-mode power supply
- Current consumption mA: 32 maximum, W: 1.7
- RF connection: F female
- Optical connection: SC/APC
- Operating temperature C: -5 ... +45
- IP 20
- Dimensions (WxHxD) mm 146 x 60 x 35
