Product description:

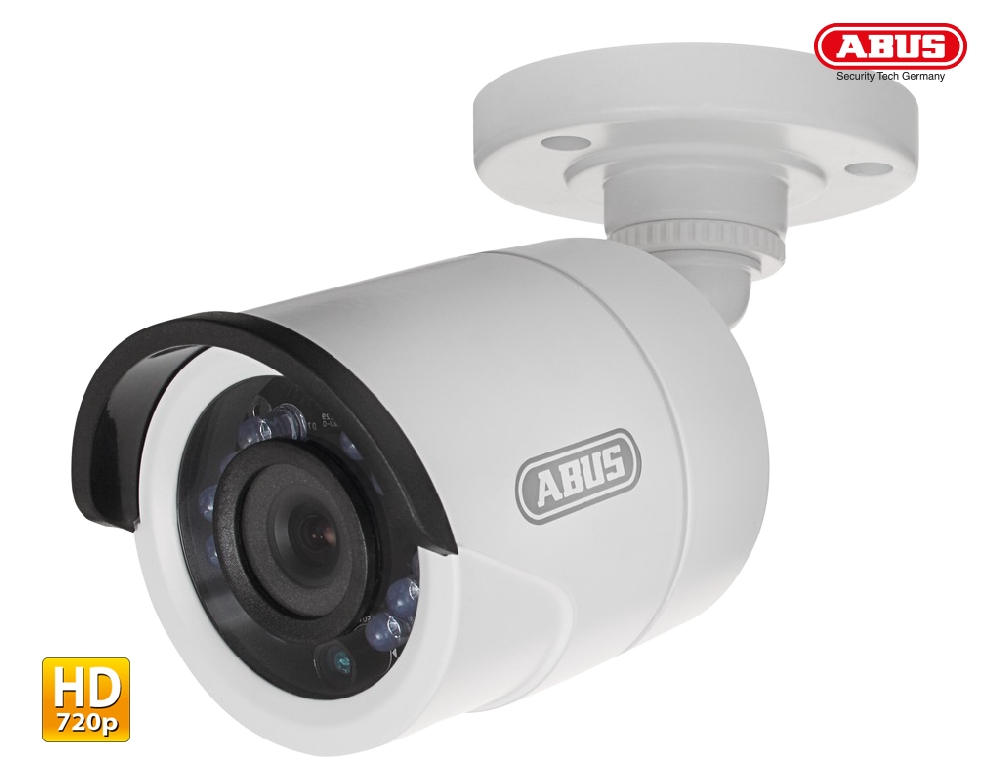

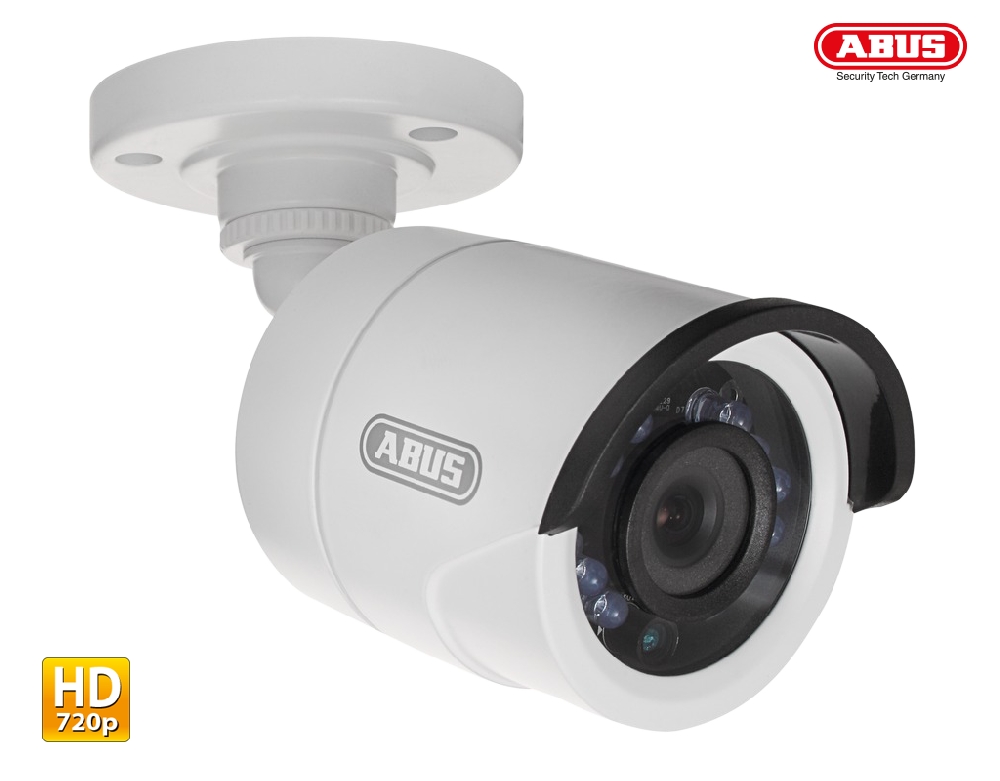

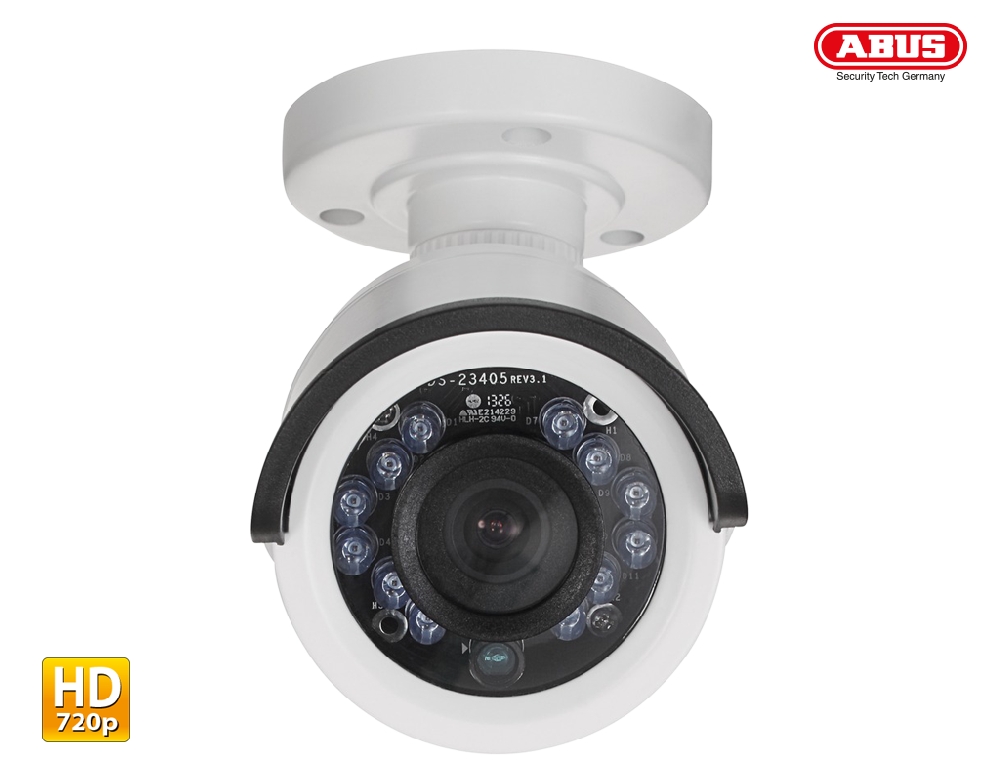

ABUS HDCC41500 outdoor/indoor tube-type camera provides detailed high resolution, thanks to 1280 x 720 pixels at 25 frames per second, 24 IR LEDs for night vision, up to approx. 10 m range, noise reduction (DNR) for clear images even at low light levels, automatic day/night switching, plug-and-play installation and connection using a BNC connector, including for existing analogue cables and all these in a sturdy weatherproof camera housing (IP66). Thanks to the supplied combined cable and plug-and-play installation, the camera can be mounted on the ceiling or wall.
Technical features:
- Camera type: Analogue HD 720p outdoor tube camera, with bracket
- Day/night switching: Electromechanical IR cut filter
- Lens: 3.6 mm, fixed lens mm
- Resolution mode: 720 pixel
- Video system: HD-TVI
- Image sensor: 1/3 inch progressive scan CMOS
- Electronic shutter: 1/25 ~ 1/50.000 s
- Pixels (effective): 1280 (H) x 720 (V) pixel
- Max. resolution @ frame rate: 1280 x 720 @ 25 fps (PAL) / 1280 x 720 @ 30 fps (NTSC)
- Noise reduction: > 52 dB
- Backlight compensation: Yes
- Horizontal angle of view: 76,88°
- IR LEDs: 24
- IR range: up to 10 m
- Minimum illumination (IR): 0 lx
- Minimum illumination (color): 0,01 lx
- Camera outputs: 1 x BNC (HD-TVI)
- Connections: Video signal (BNC), power supply (DC)
- DC voltage supply: 12 V
- Power consumption: 3,5 W
- Power consumption: 300 mA
- Operating temperature: -20 °C - 50 °C
- Max. humidity: 90 %
- IP protection class: 66
- Housing material: metal
- Dimensions: 149,5 mm (L) X 70 mm (D) X 70 mm (W)
- Certifications: CE, C-Tick
- Warranty: 2 years

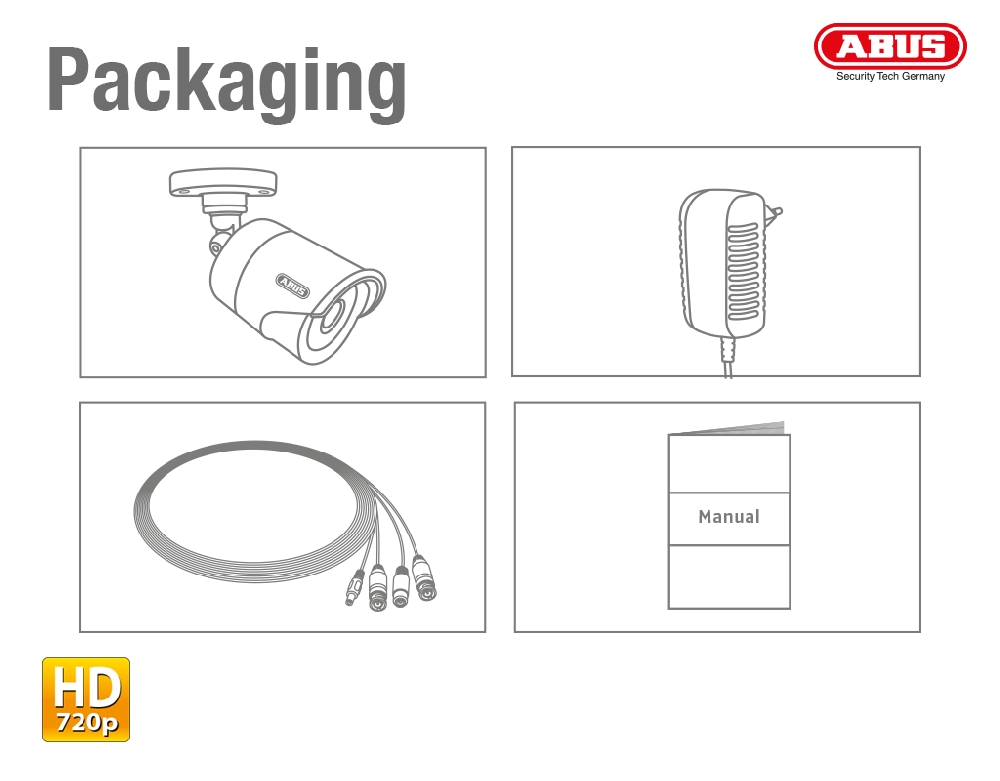

Scope of delivery:
1 x ABUS HDCC41500 Analogue HD 720p outdoor camera with bracket mount
1 x Power supply unit including EU (Australian and UK adapters)

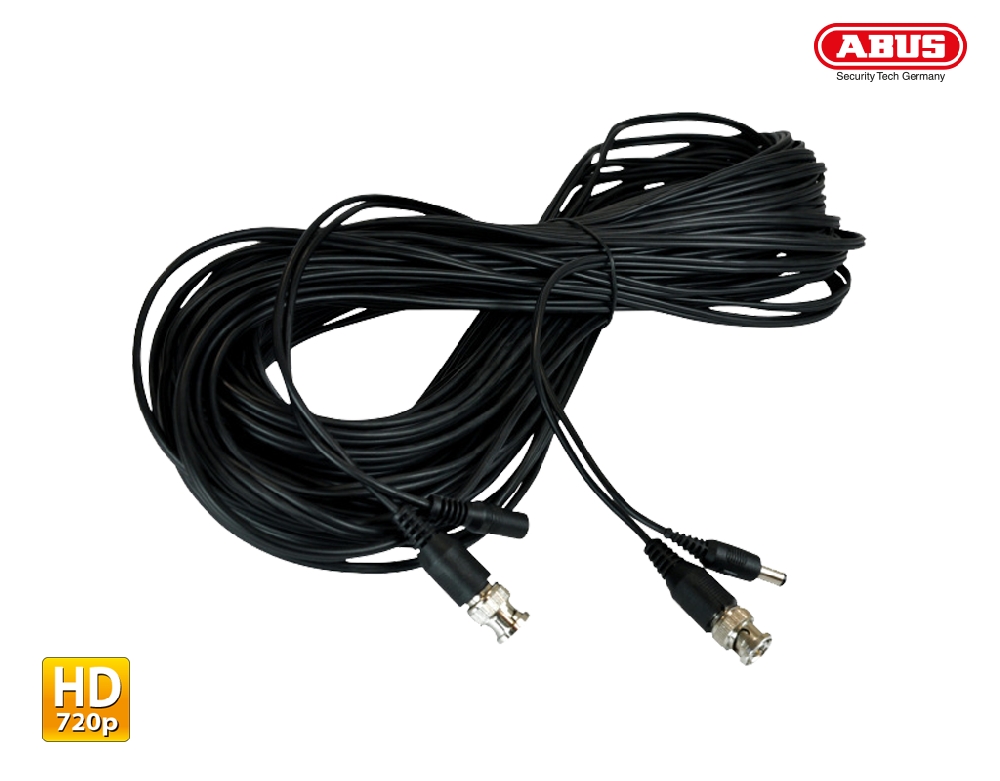

1 x 30 m combination cable
1 x Manual
