Product description:

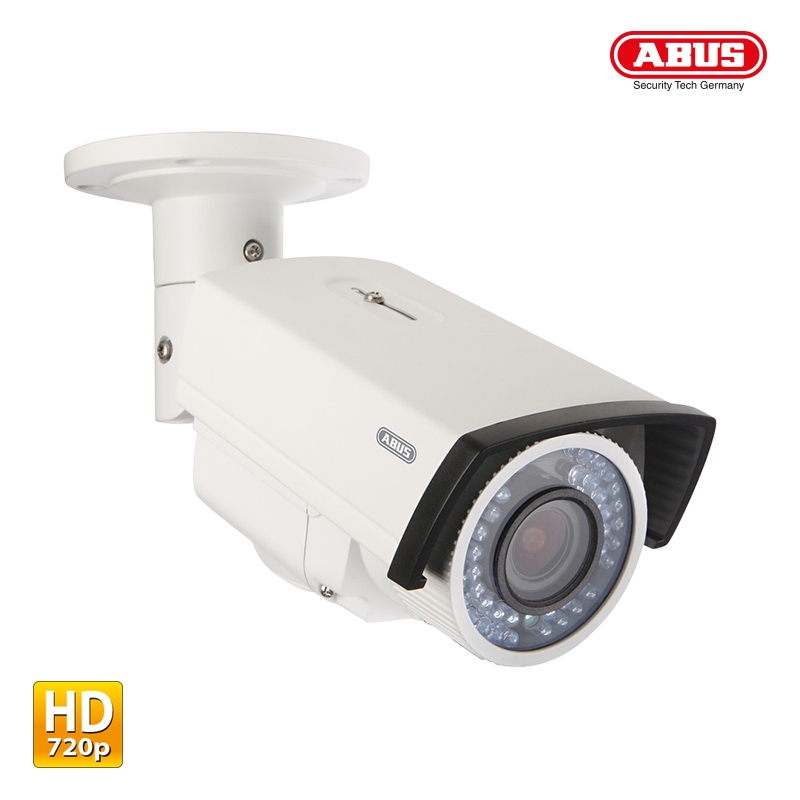

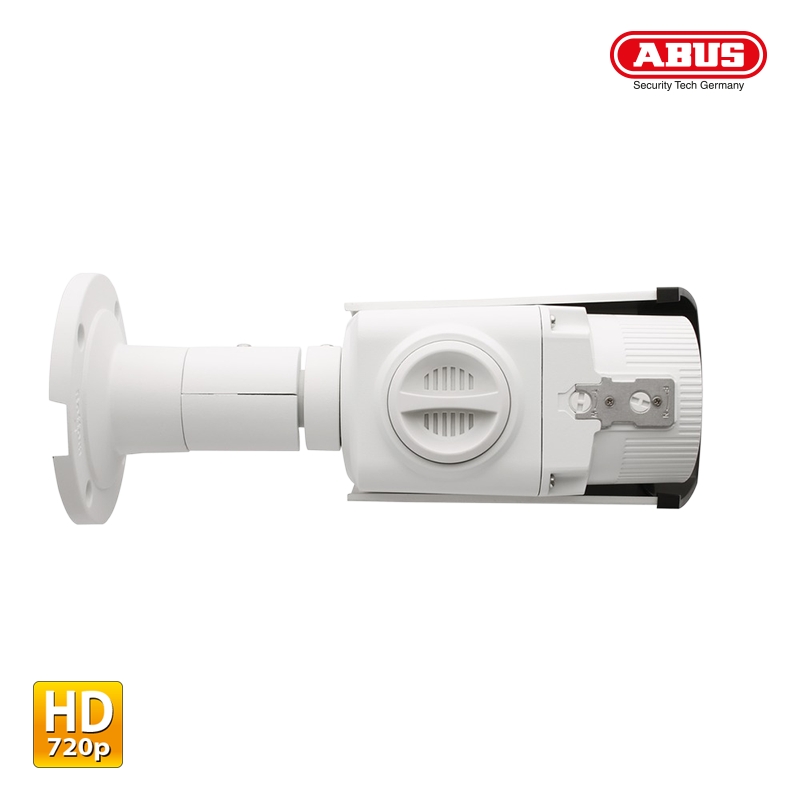

ABUS HDCC61510 Outdoor Analogue HD Tube IR 720p Vario camera offers image in High Definition HD-TVI technology at 720p resolution: 1280 x 720 @ 25 fps and video signal transmission using conventional CCTV infrastructure (coaxial cable up to 500 metres). Full HD resolution at a signal transmission range of up to 300 metres (RG59) or 500 metres (RG6) via coaxial cable. With protection class IP66, a 2.8-12 mm Vario lens, 1/3'' CMOS image sensor and 42 integrated infrared LEDs, it can be used in all environments, even poorly lit locations and even in complete darkness, both indoors and in sheltered outdoor areas. The integrated DWDR function compensates differences in contrast and brightness and is therefore suitable for backlight. The 3D DNR function provides noise-free images with optimal dodging. The cables are completely internal (in the mount) and are thus optimally protected against weather conditions and tampering. Focus, zoom and IR light (intensity/angle) can be set externally, enabling quick installation.
Main features:
Vari-focal lens, 2.8-12 mm with 1/3'' CMOS image sensor, 42 IR LEDs for night vision, up to approx. 40 m range, 3D DNR function for noise-free images, DWDR function to compensate for image contrasts, Weatherproof camera housing and mount with internal cable routing (IP66), Automatic backlight compensation
Technical features:
- Camera type: ABUS HDCC61510 Outdoor Analogue HD Tube IR 720p Vario camera
- Video system: HD-TVI
- Resolution modes: 720p pixel
- Image sensor: 1/3 inch progressive scan CMOS
- Pixels (effective): 1280 x 720 pixel
- Max. resolution @ frame rate: 720p @ 25 frames/s (50 Hz) / 720p @ 30 frames/s (60 Hz)
- Digital zoom: (50/60/70/80/90/100) %
- Focal length: 2.8-12.0 mm
- Horizontal angle of view: 28°-78°
- Lens control: AES
- IR LEDs: 24
- IR range: 40 m
- Electronic shutter: 1/25-1/50000 s
- Minimum illumination (color): 0,1 Lux.
- Minimum illumination (IR): 0 Lux.
- Minimum illumination (B/W): 0,01 Lux.
- Private zones: 8
- Noise reduction: 3D-DNRs
- Backlight compensation: DWDR
- Day/night switching: Electromechanical IR cut filter
- Amplifier control: A.G.C.
- White balance: A.T.W.
- Housing material: Metal
- Connections: 1 x BNC (HD-TVI), 1 x BNC (FBAS), 1 x DC/AC (2-Pin)
- Control: ABUS-C (on-screen display, control via coax)
- Camera outputs: 1 x BNC (HD-TVI), 1 x BNC (FBAS, service)
- AC voltage supply: 24 V
- DC voltage supply: 12, +/-10% V
- Power consumption: 6 W, 500 mA
- IP protection class: 66
- Operating temperature: -20 °C ~ 60 °C.
- Max. humidity: 90 %
- OSD language: UK
- Certifications: CE, RoHS, REACH
- 2-year warranty
Scope of delivery: 1x Camera ABUS HDCC61510 Outdoor Analogue HD Tube IR 720p Vario, 1x Safety information
Related Products
-
HDCC90000 4-channel Analogue HD Video Recorder
More -

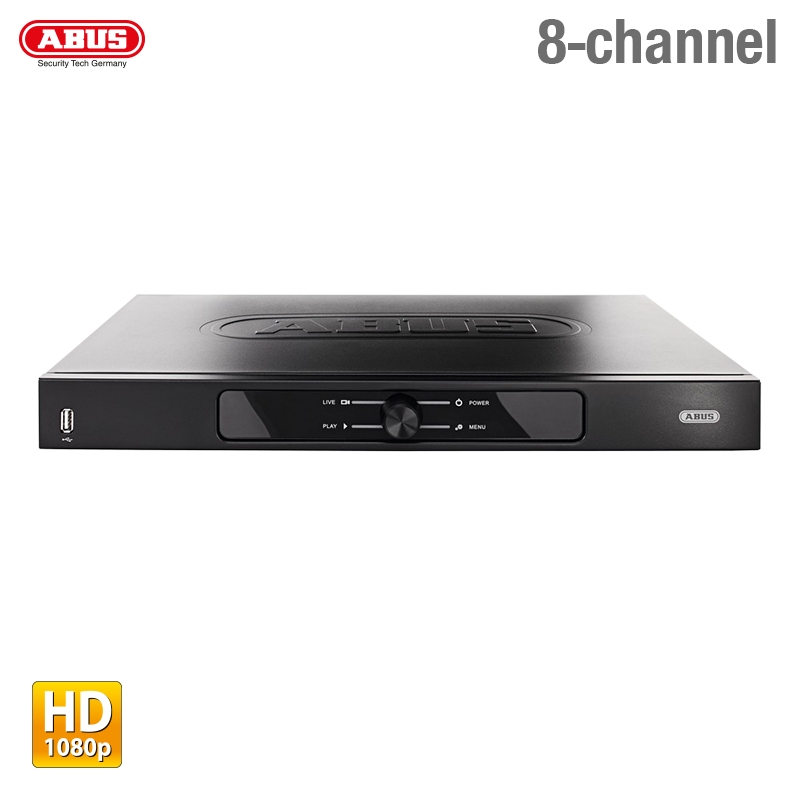

HDCC90010 8-channel Analogue HD Video Recorder
More -

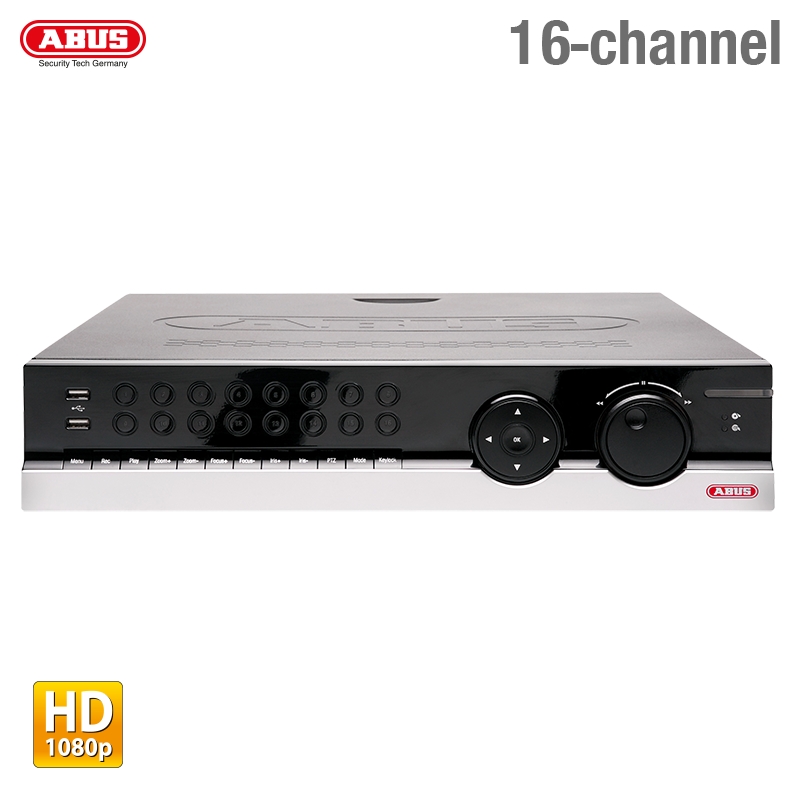

HDCC90020 16-channel Analogue HD Video Recorder
More -
HDCC71510 Outdoor Analogue HD Dome IR 720p Vario
More -

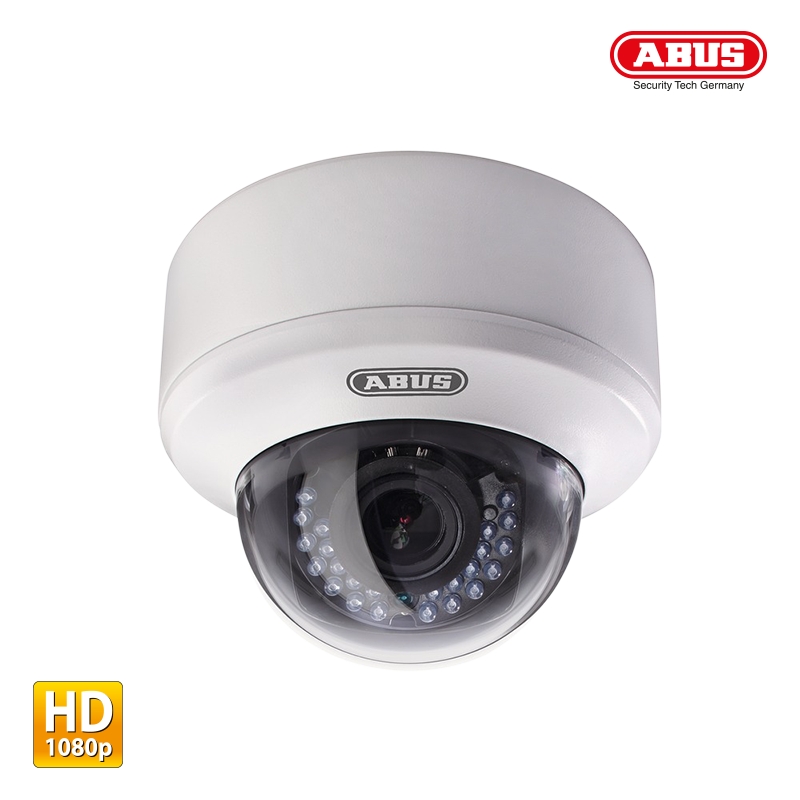

HDCC72510 Outdoor Analogue HD Dome IR 1080p Vario
More -

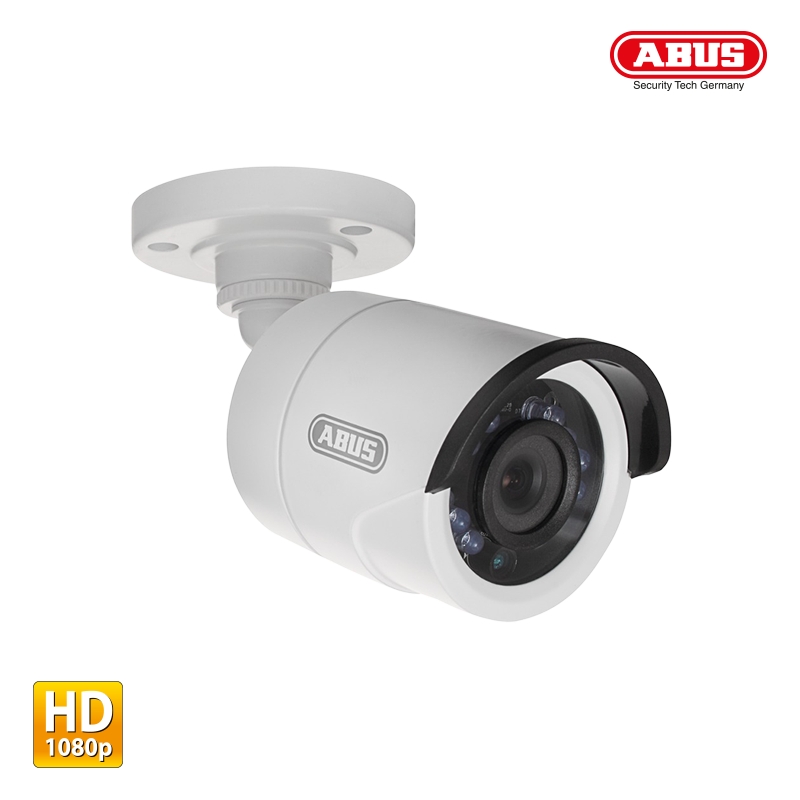

HDCC42500 Outdoor Analogue HD Mini Tube IR 1080p
More -

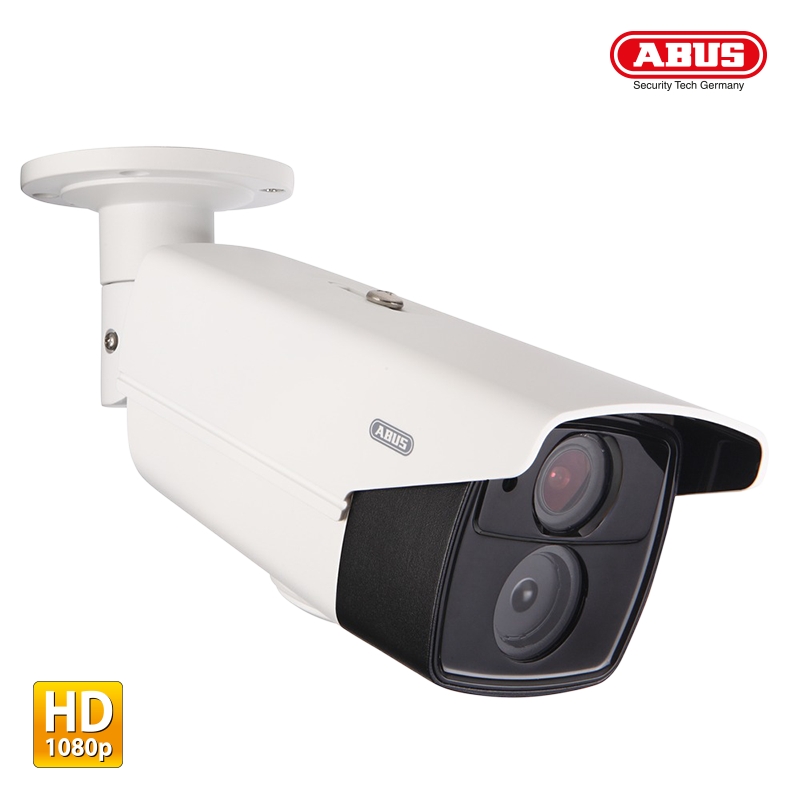

HDCC62510 Outdoor Analogue HD Tube IR 1080p Vario
