Product description:

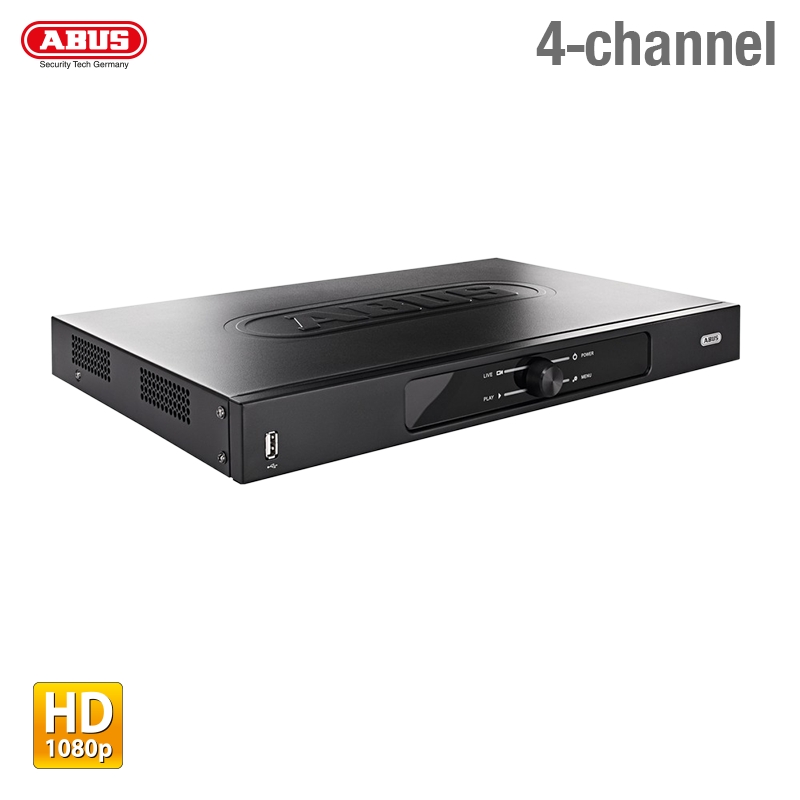

The ABUS HDCC90000 4-channel Analogue HD Video Recorder allows the recording and management of up to 4 analogue HD cameras in full HD (1080p) or 4 analogue cameras in real time. The hybrid function allows combined operation of both the latest analogue HD cameras with HD-TVI technology and conventional analogue cameras. This guarantees cost-effectiveness and return on investment, for example when converting and upgrading existing CCTV systems. The recorder supports a SATA hard disk drive with up to 4 TB for data storage and increased transmission range using coaxial cable. A great advantage of HD-TVI technology is the line lengths across large distances that can be achieved without a reduction in quality. An HD-TVI signal (720p HD or 1080p full HD) can be transmitted in real time, for example, via a conventional RG59 cable (up to 300 metres) or RG6 cable (up to 500 metres). The range extends across both conventional analogue and HD-SDI devices. Both video and control signals such as PTZ and OSD controls are transmitted via a BNC cable. Three analysis functions support video recordings with quick evaluation. Smart playback: an area can be selected that only displays recordings in which movement occurs. Trip wire: a line can be drawn that only displays recordings in which the line was crossed. Intrusion detection: an area can be drawn that only displays recordings occurring within this area. Mobile access via app from anywhere in the world. The network connection of the recorder provides global access to the video image data, which can be called up at any time from any place using the free iDVR mobile app.
Technical features:
- HD-TVI video channels: 4, Video compression: H.264, Camera inputs: 4 x BNC (HD-TVI, Analog CVBS), Views: 1 / 4, User levels: 2 (max. 31 users).

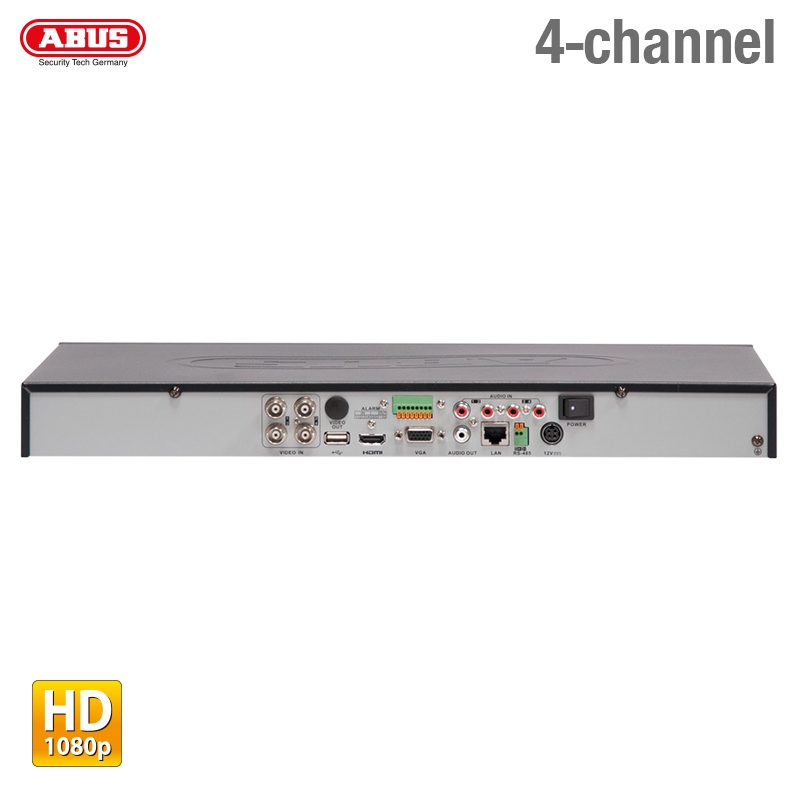

- Camera outputs: 1 x VGA, 1 x HDMI, 1 x Main BNC, Monitor outputs: 1 x VGA, 1 x HDMI, Operating mode: Triplex
- Resolution (Live view): _HDMI_: 1920*1080/60Hz(1080P), 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz, _VGA_: 1920*1080/60Hz(1080P), 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz, _BNC_ Output: PAL: 704Χ576, NTSC: 704Χ480
- Recording resolution @ frame rate per camera (NTSC): 1920 x 1080 @ 30 fps, 1280 x 720 @ 30 fps, 640 x 480 @ 30 fps, 704 x 576 @ 30 fps, 352 x 288 @ 30 fps
- Recording resolution @ frame rate per camera (PAL):1920 x 1080 @ 30 fps, 1280 x 720 @ 30 fps, 640 x 480 @ 30 fps, 704 x 576 @ 30 fps, 352 x 288 @ 30 fps
- Recording frame rate: 1/16 fps to 25/30 fps, Total frame rate 100 fps, Compression levels 6, Pre-alarm/post-alarm memory: 0~30 sec. / 5900 sec. s
- Storage 2 x USB 2.0, Storage medium 1 x 3.5'' SATA HDD (max. 4 TB), 8 x network drive
- Recording duration: MAX. resolution and frame rate: 149 hours/TB, MIN. resolution and frame rate: 1165 hours/TB, bitrate: 32 Kbit/s to 10 Mbit/s, Total network input/output: 128Mbit (0 Mbit / 128Mbit)
- Recording modes: VCA (tripwire, intrusion detection), motion detection, alarm, motion detection and alarm, motion detection or alarm, time schedule, manual, Control: Mouse, PC software, integrated web server
- AUDIO Audio In: 4 x cinch (2.0 V p-p, 1000 O), Audio Out: 1 x cinch (600 O), Audio compression: G.711u, Audio bitrate: 64 kbit/s
- DDNS: Yes, Software: ABUS CMS Software (Windows), iDVR Plus (iOS/Android), iDVR Plus HD (iOS/Android)
- ACCESS: Mobile: Yes (iOS/Android: iDVR Plus, iDVR Plus HD), Network: 1 x RJ45 10/100/1000 Mbps, Network functions: DVR: NAS saving, IP-SAN saving/recorder software: Live view, playback, data export/web interface: Live view, playback, data export, log files, settings/apps: Live view, playback, Simultaneous network access: 128 channels, Web Server.
- Network protocols: TCP/IP, PPoE, DHCP, DNS, DDNS, NTP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
- PTZ protocols:ABUS-Coaxitron, PELCO-D, PELCO-P, Samsung, LG-MULTIX, PTZ control: RS-485, HD-TVI
- Stream 1: Recording resolution @ frame rate per camera (PAL): 1080p / 720p / VGA / 4CIF / CIF, Stream 2: Recording resolution @ frame rate per camera (PAL):WD1 / 4CIF / CIF / QCIF / QVGA
- Relay output: 1 (maximum load: 12 V DC/1 A), Tamper monitoring of video: Yes
- Alarm inputs (NO/NC): 4, Alarming: Acoustic warning, OSD signal, email
- Hybrid-enabled: Yes
- DC voltage supply: 12 V, Power consumption: < 15 W
- Dimensions: 485 x 135 x 385 mm
- Operating temperature: -10 °C ~ 55 °C, Max. humidity: 90 %
- IP protection class: 20
- Certifications: CE, RoHS, REACH, C-Tick
- OSD language:German, English, French, Dutch, Danish, Polish, Swedish, Russian
- 2-year warranty
Scope of delivery: 3x Power cable, 1x USB mouse, 1x Hard drive cable, 1x Server cabinet bracket, 1x Mounting material, 1x Recorder software (on CD), 1x Quickstart guide
