Product description:

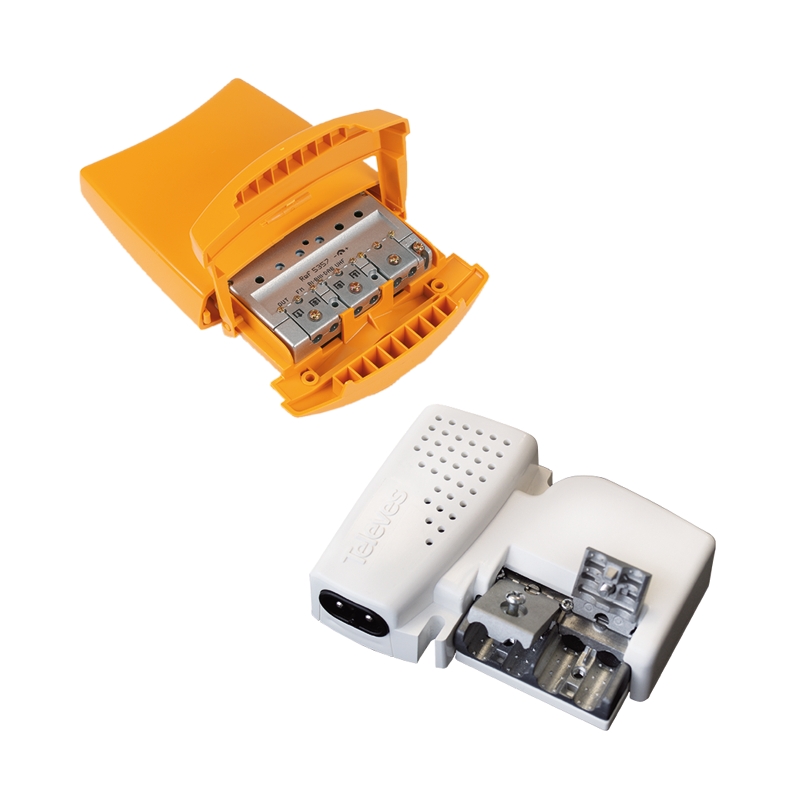

KIT of power supply 5796 (high efficiency switched-mode with small and discreet design) and 5350 VBroadband mast amplifier made of special plastic, formed to withstand enviromental conditions. It has Easy-F connection, offering the advantages of ''F'' plug and saddle & clamp combined. Capable of mixing SAT signals
Technical features:
5350 MAST AMPLIFIER
- Inputs: VHF,UHF,?F.
- Frequency range: MHz 47-254,470-862,950-2150.
- Gain dB VHF: -1.5,UHF:29,IF:-2
- Gain regulation:dB VHF:-, UHF:15, IF: -
- Noise figure:dB BI/BIII-FM: 4.5, UHF:2.5, IF: -
- Output level DIN 45004-B: dB΅V UHF: 103 , VHF/IF: -
- DC bypass mA VHF:-,UHF:-,IF: 350
- Powering: Vdc 12-24
- Consumption: mA 40
- Protection index: IP 23
PICOKOM 5796 IF-MIX POWER SUPPLY
- Frequency range:MHz 5-2500
- Powering V 12
- Mains voltage 196-264
- Max. Output current mA 220
- Min. Output current mA 30
- Max. operating temperature: 45 C
- Protection index IP 20
- Consumption: W 3.7
