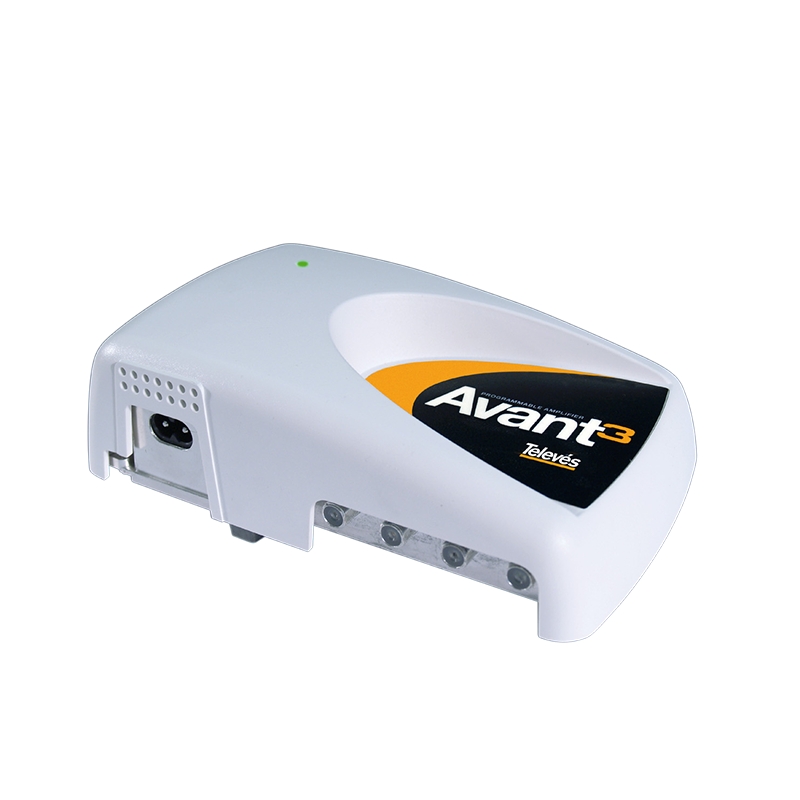

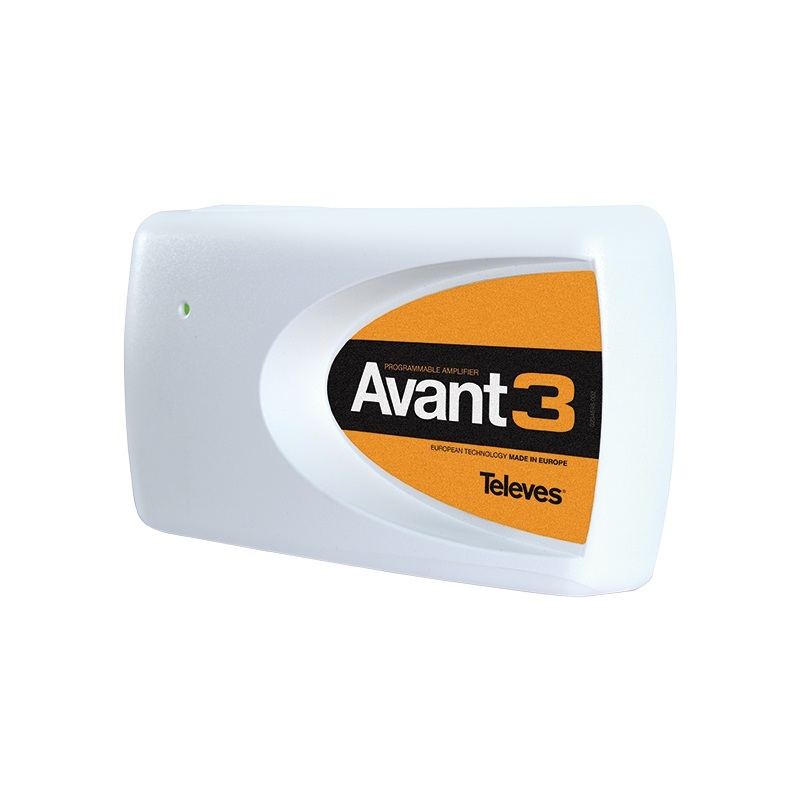

Product description:
AVANT-3 has 5 UHF filters and 1 VHF filters. Filters 2 UHF inputs with two possible filter assigments (2-3 or 5-0); each filter can cluster up to 7 channels. Input loopthru to mix the output of another AVANT3. Broadband output to another AVANT3. Split-band amplification. FM/BI input.
Technical features:
- Inputs: UHF 1, UHF 2, FM/BI, VHF, IN MIX
- Band MHz: UHF 1: 470-862, UHF 2: 470-862, FM/BI:47-68/87-108, VHF:174-406, IN MIX:47-406 / 470-862
- Filtres per input UHF 1: 5-0 UHF2: 2-3
- No. of channels per filtre UHF 1/UHF 2: 1-5 (BIV) / 1-7 (BV)
- Gain dB UHF1/UHF2:52±3, FM/BI:32±2/15±2, VHF:35±2, IN MIX:3±3 (INMix-OUT)
- Gain regulation: FM / BI:0-18, VHF: 0-15
- AGC filtre range: UHF 1/UHF2: 0-20
- Output level regulation UHF1/UHF2: 15
- Input level (max.) dB΅V UHF1/UHF2: 95
- Output level (typ.) 2 DTT CH.dB΅V: UHF1/UHF2:113, FM/BI:111, VHF:111, IN MIX:111/113
- DIN 45004B: UHF1/UHF2:116, FM/BI:114, VHF:114, IN MIX:114/116
- IMD3 (2CH-60dB) : UHF1/UHF2:113, FM/BI:111, VHF:111, IN MIX:11/113
- Rejection dB: UHF1/UHF2: 20 (±16MHz), FM/BI:20 (±206MHz), VHF:15 (±40MHz)
- Noise figure (typ.) dB UHF1/UHF2:7 FM/BI:7 VHF: 7
- IN (12Vdc) Pre-amplifier powering [ON/OFF switch] mA: UHF1/UHF2: 50
- Mains V~:196-264
- Maximum current mA: 80
- Maximum power W: 9
- Protection index: IP20
- Operating temperature ΊC: -5 ... +45
- Output for cascading mount OUT: Band 470-862 Gain (UHF1, UHF2-UHF) 2±2
