Product description:

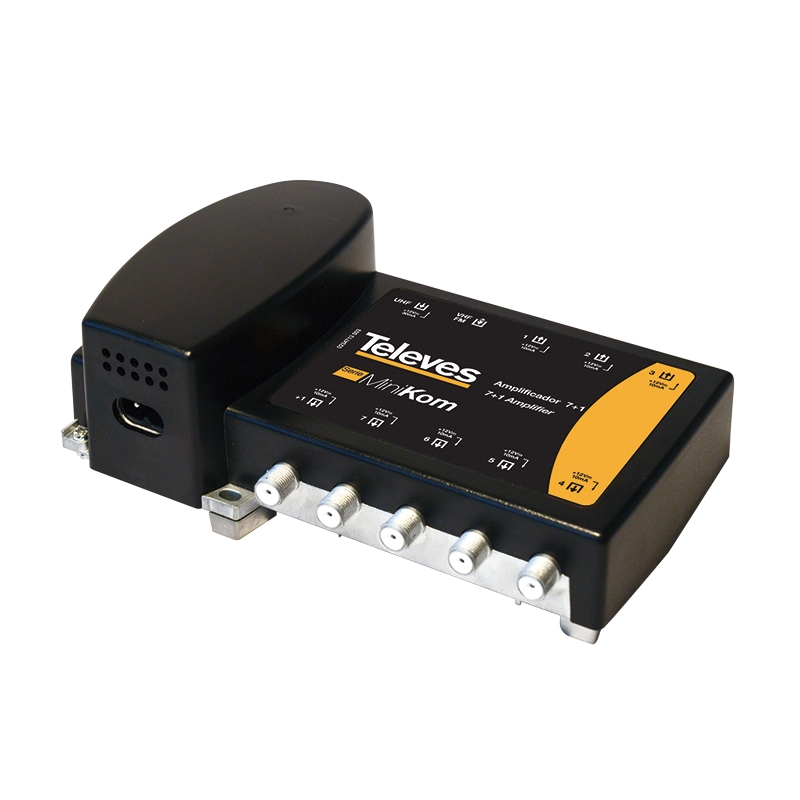

TELEVES 537201 SMATV/MATV amplifier has 1 input [VHF-FM], 1 input UHF and 7+1 outputs, plus Return Path
Technical features:
- Noise figure: dB 2.5
- Power supply: (207-253v~ 50/60Hz)
- Ground connection
- LED indication for signal presence
- Inputs: 1x FM-VHF 1x UHF
- Outputs: 7 individual, +1 for use with splitter (isolation with load ''F'' 75 Ohm, if not used)
- Return Path: 5-7 MHz
- Bandwidth: MHZ 5-7/47-230/470-862
- Gain VHF 5(16db +1), UHF 15(27db +1)
- Output level (DIN 45004B) dB΅V 88/101 (OUT+1) 108 (Ret. Path)
- Total input DC Bypass: mA 30 (UHF)
- Operating temperature: C -5 . . . +45
- Protection: IP20
