Product description:

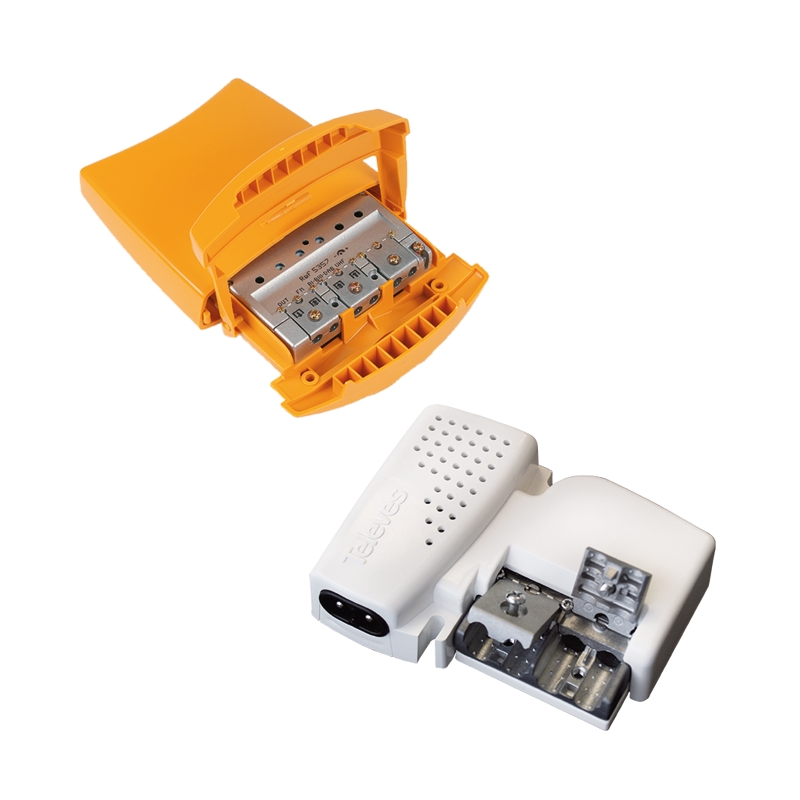

KIT of power supply 5795 (high efficiency switched-mode with small and discreet design) and 535802 VBroadband mast amplifier made of special plastic, formed to withstand enviromental conditions. It has Easy-F connection, offering the advantages of ''F'' plug and saddle & clamp combined.
Technical features:
535802 MAST AMPLIFIER
- Inputs: BI/BIII,DAB,FM,UHF1,UHF2.
- Frequency range: MHz 47-68-175-254, 88-108, 470-862.
- Gain dB BI/BIII: 25/30,FM:15,UHF1/2:38
- Gain regulation: dB BI/BIII:15,FM:20,UHF1/2:15.
- Noise figure:dB 4,UHF1/2: 7.5
- Output level DIN 45004-B: dB΅V BI/BIII-DAB/FM:112,UHF:114
- DC bypass mA UHF1/2:40
- UHF1/2 input isolation : 18 db
- Powering: Vdc 24
- Consumption: mA 70
- Protection index: IP 23
PICOKOM 5795 POWER SUPPLY
- Frequency range: MHz 5-862
- Powering V 24
- Mains voltage 196-264
- Max. Output current mA 130
- Min. Output current mA 30
- Max. operating temperature: 45Ί C
- Protection index IP 20
- Consumption: W 4.4
