Product description:

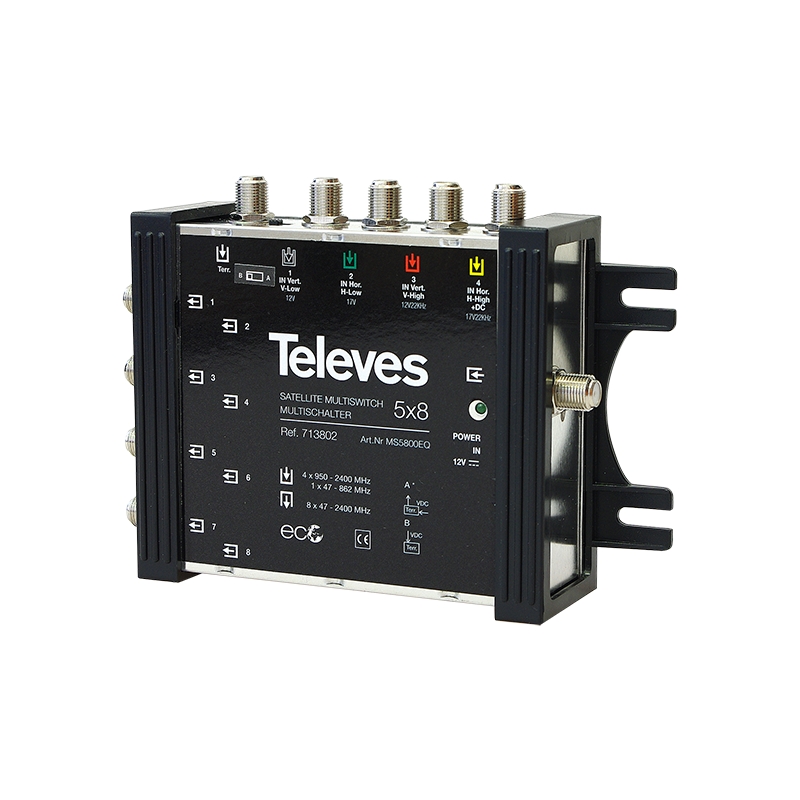

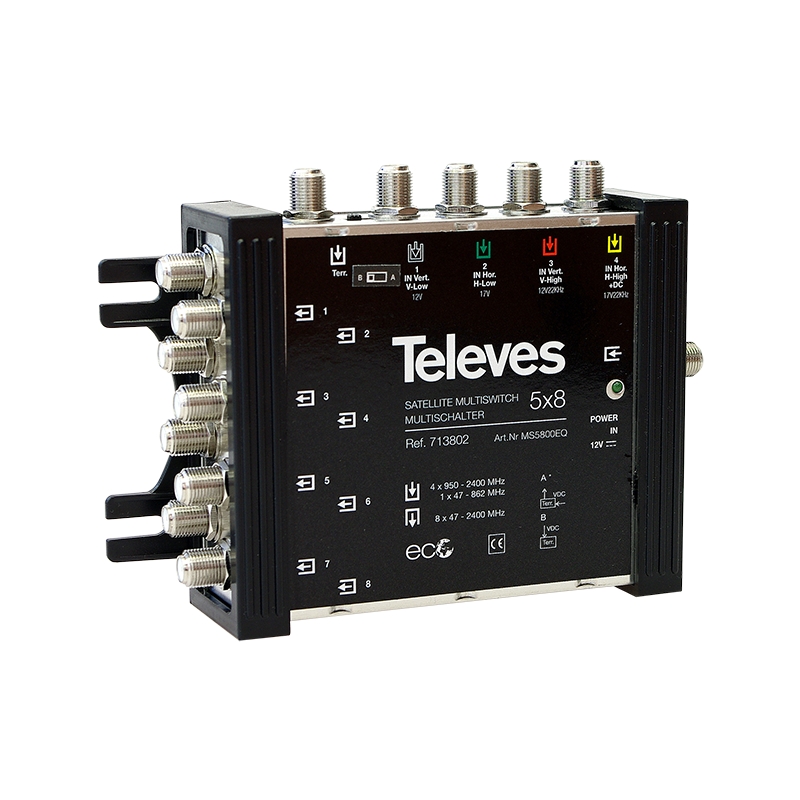

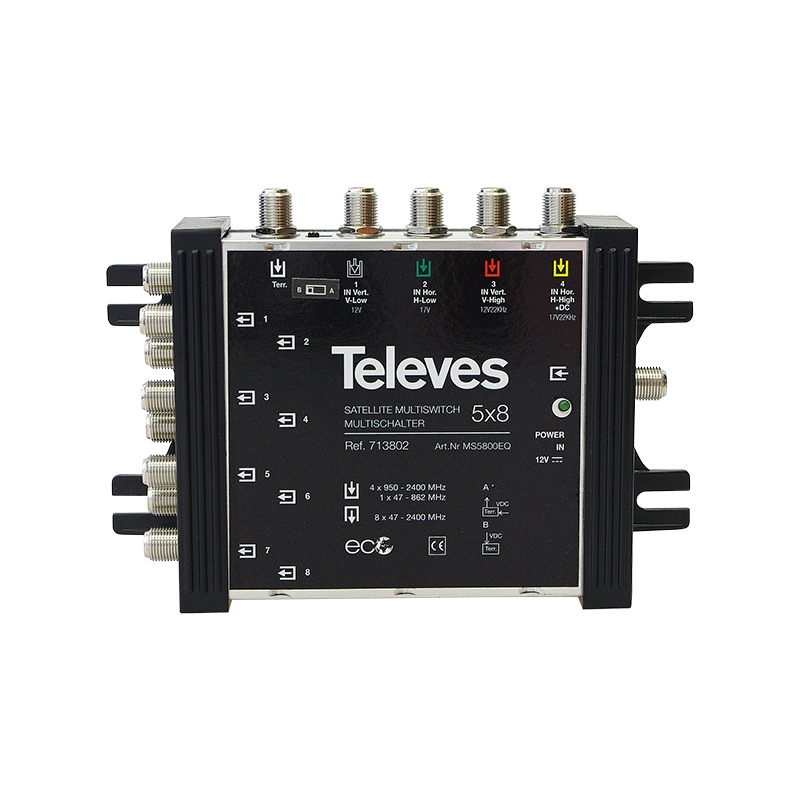

Televes 713801 5x8 Multiswitch, with 4 satellite inputs and input for mixing the terrestrial signal that is distributed to all the 8 outputs.
Technical features:
- Frequency rangeMHz: SAT 950-2400 TER 47-862
- Input level dB΅V: SAT 109 TER 89
- Tap Output level: SAT 100 TER 100
- Isolation between inputs: 30 db
- Isolation between outputs: 30 db
- LNB powering mA: 400/input max. ( MONO ap? Horizontal High)
- Powering voltage Vac/Vdc: 230/12
- Maximum consumption: mA t??f?d?t???: 40 / ???t??: 100 / e?s?d?? Terr. (΅e t? d?a??pt? st? B): 40
- IP 20
- Dimensions:mm 161x110x42
