Product description:

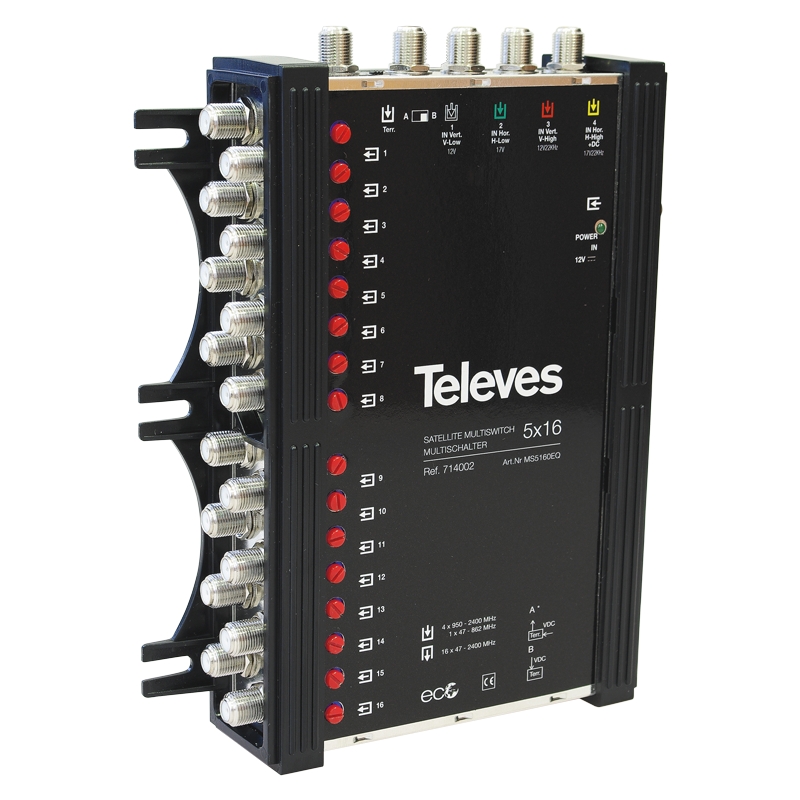

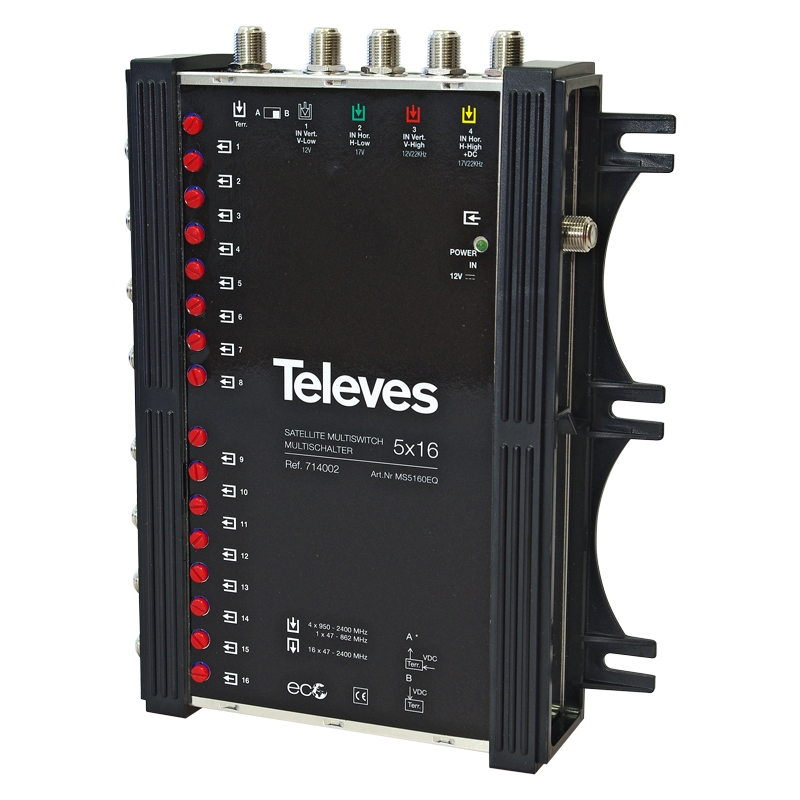

Televes 714002 Multiswitch 4 satellite inputs and 1 terrestrial signal input for distribution to all 16 outputs.
Technical features:
- Frequency range MHz: SAT 950-2400 TER 47-862
- Input level dB΅V: SAT 95 TER 90
- Tap Output level: SAT 95 TER 89
- Isolation between inputs: >20 db
- Isolation between outputs: >20 db
- LNB powering mA: 400/input, 1200 (total)
- Powering voltage Vac/Vdc: 230/12
- Maximum consumption: mA Power Supply 90/Terrestrial 40/Receiver 90
- IP 20
- Dimensions: mm 196x161x41
