Product description:

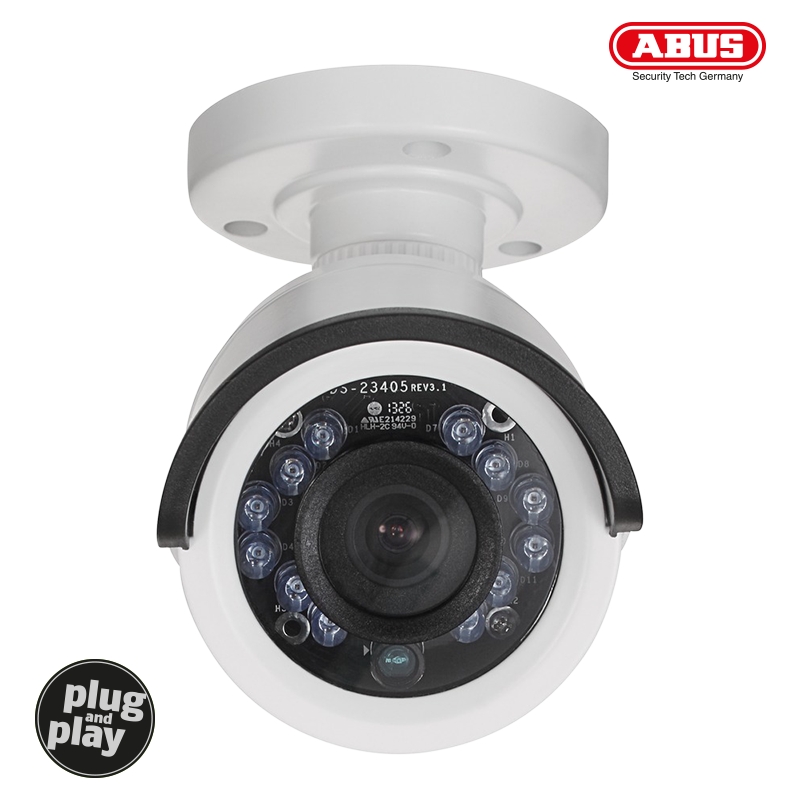

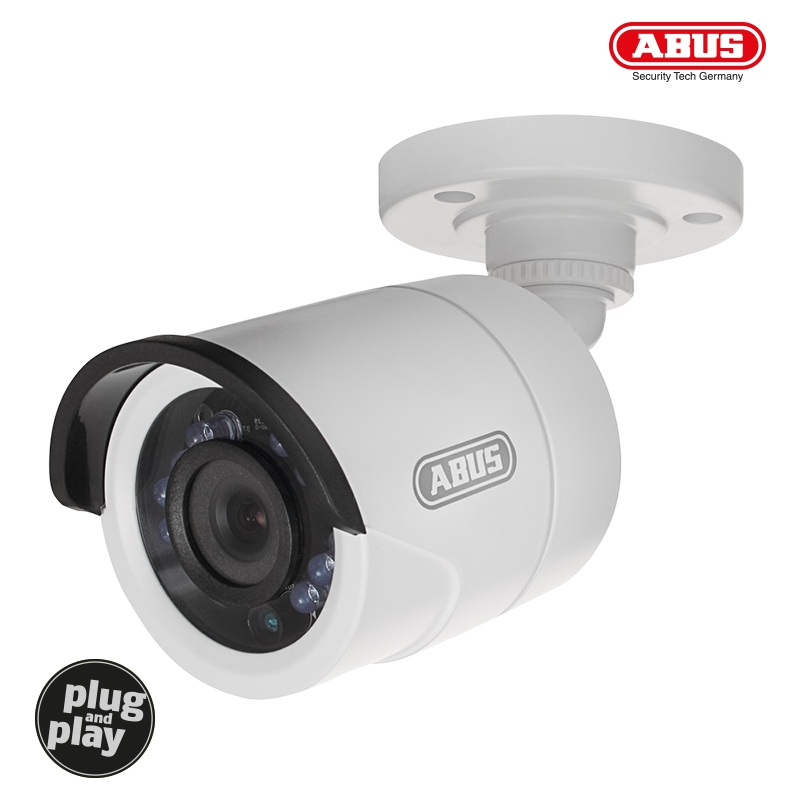

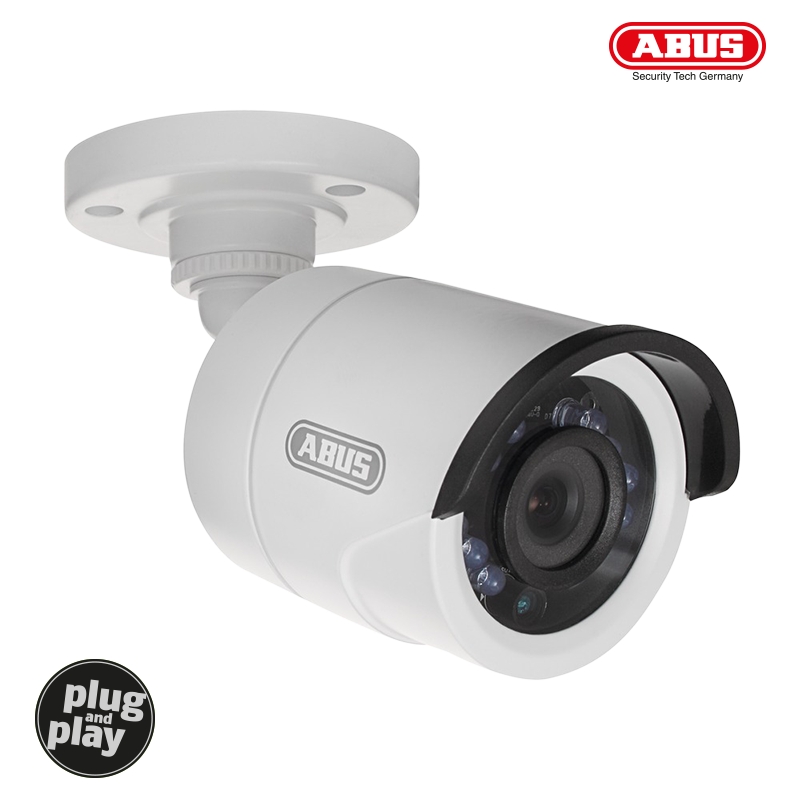

TVCC40020 is a compact day/night vision mini outdoor camera. Varied camera installation options - whether indoors or outdoors. Simple design and high protection class (IP66). High resolution. Ideal for extension of TVVR41200/TVVR41210/TVVR41220. It stands out with its plain, unobtrusive design and high protection class (IP66), which means it can be used both outdoors and indoors without an additional weatherproof housing. With a high, detailed resolution of 600 TVL, it delivers precise video images for accurate recognition of persons.
Technical features:
- Camera type: Day/night outdoor camera
- Day/night switching: Electromechanical IR-cut filter
- Resolution: 600 TVL
- Pixels (effective): 720 (H) x 480 (V) pixel
- Lens: 3.6 mm, fixed lens mm
- Image sensor: 1/3'' DIS
- Horizontal angle of view: 68,4 °
- Video system: PAL / NTSC
- IR LEDs: 12
- IR range: 10 m
- Minimum illumination (IR): 0 Lux
- Minimum illumination (color): 0,1 Lux
- Backlight compensation: Yes
- Noise reduction: > 52 dB
- Electronic shutter: 1/25 ~ 1/15.000 sec.
- Connections: Video signal (BNC), power supply (DC)
- IP protection class: 66
- Max. humidity: max. 90 %
- Operating temperature: -20 °C ~ 50 °C
- DC voltage supply: 12 V
- Power consumption: 420 mA
- Dimensions HxLxW: 70x150x70 mm
- Packing dimensions LxWxH: 164x225x97 mm
- 2-year warranty
Scope of delivery:
1 x Day/night outdoor camera
1 x Manual
