Product description:

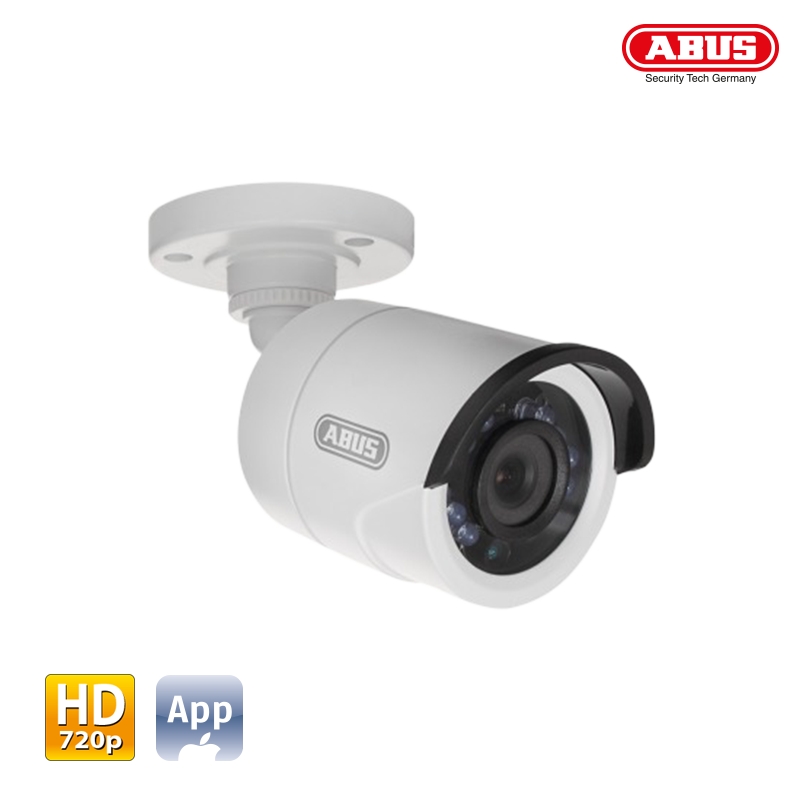

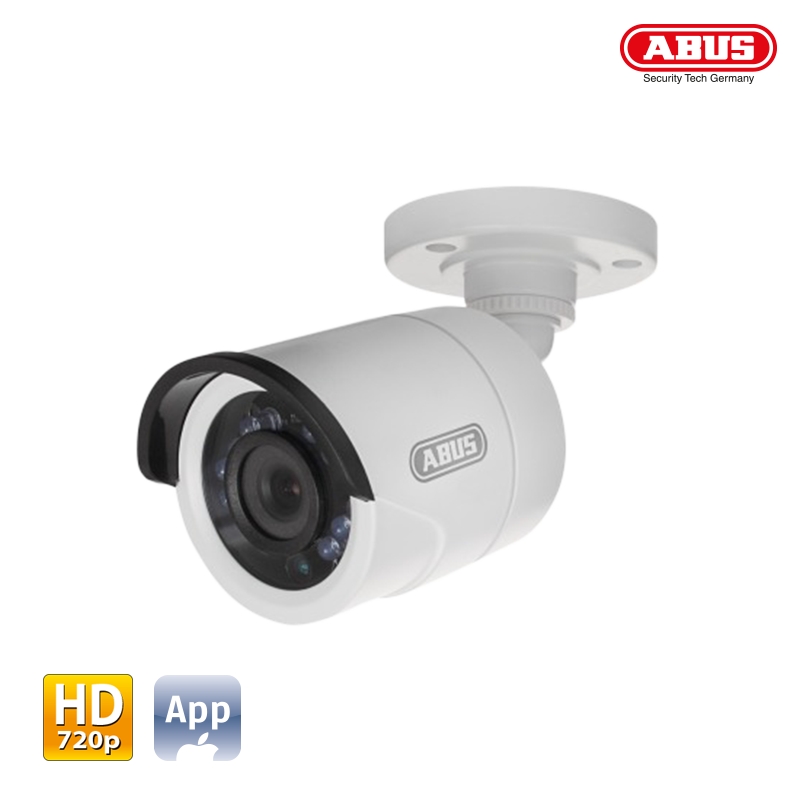

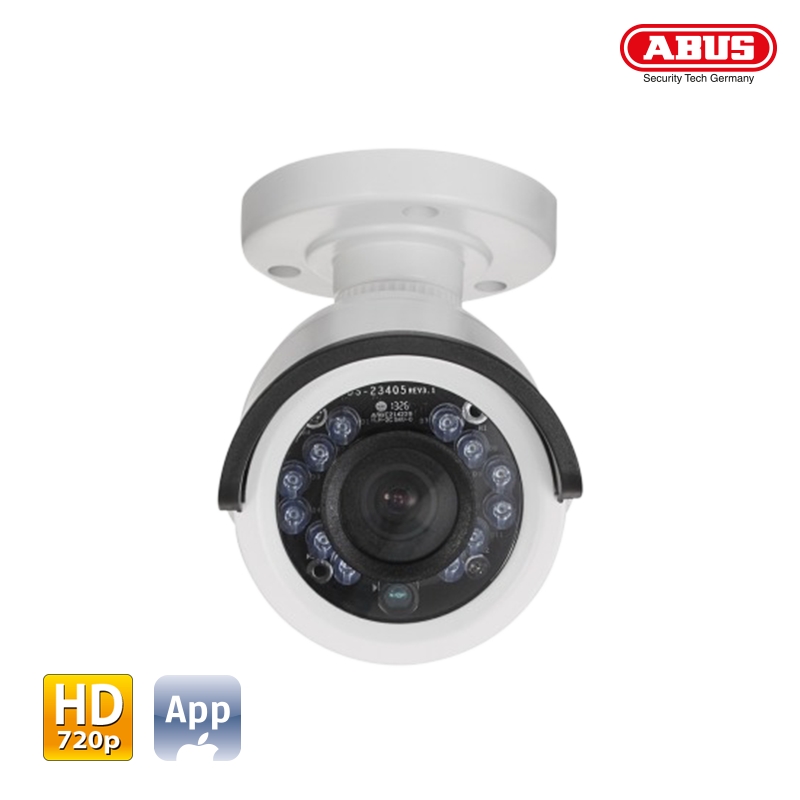

TVIP61500 is a Compact day/night vision IP outdoor camera, for indoors or outdoors. Simple design and high protection class (IP66). Provides high resolution, 1280 x 720 pixel at 25 frames/second. Comes with 1 x 1-metre network cable. With Internet and mobile access to live pictures via app and browser and picture sendind via e-mail. Also with Integrated motion sensor system. Thanks to PoE (Power over Ethernet), you can power the camera using the network cable and do not need to lay an additional power cable.
IMPORTANT: Camera recording is only possible in the VMS Express not in VMS Basic, Professional, Enterprise or with an NAS recording system.
Technical features:
- Camera type: Day/night.
- ONVIF: Profile S.
- Focal length: 4,0 mm.
- Digital zoom: Yes.
- Electronic shutter: 1/3 - 1/100000 s.
- Backlight compensation: Soft-WDR.
- Horizontal angle of view: 69,4 °.
- IR LEDs: 30.
- IR range: 10 m.
- Resolution modes: 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288, 320 x 240 pixel.
- Motion detection: 3 zones.
- Image sensor: 1/3'' Progressive Scan CMOS.
- Pixels (effective): 1280(H) x 960(V) pixel.
- Pixels (total): 1280(H) x 960(V) pixel.
- Frame rate: 25 frames/s @ 1280 x 960, 25 frames/s @ 1280 x 720 fps.
- Max. resolution @ frame rate: 1280 x 960 @ 25 fps.
- White balance: Yes.
- Day/night switching: Electromechanical IR-cut filter, Color/B-W.
- Amplifier control: AGC.
- Video compression: H.264, MJPEG.
- Pre-alarm/post-alarm memory: 1 pre-alarm image, 1 event image, 1 post-alarm image.
- Noise reduction: DNR.
- IP protection class: 66.
- Minimum illumination (color): 2.
- Minimum illumination (IR): 0.
- Max. operating temperature: 50 °C.
- Min. operating temperature: -10 °C.
- Housing material: Metal.
- Alarming: E-Mail.
- Software: ABUS VMS Express, IP-Cam App (iOS).
- Connections: 1 x RJ45, 1 x DC.
- Number of streams: 2.
- LAN network access: RJ45.
- Network camera protocols: IPv4, IPv6, TCP/IP, HTTP, UPnP, RTP/RTSP, SMTP, DHCP, NTP, DNS, DDNS.
- PoE: 802.3af.
- Private zones: 4.
- DC voltage supply: 12 V.
- Language of instructions: DE, UK, FR, NL, DK. PL, RU, SWE, IT, ES.
- OSD language: DE, UK, FR, NL, DK. PL, RU, SWE, IT, ES.
- Power consumption: 580 mA, 7,0 W.
- Dimensions: (WxHxD) 60x60x157 mm.
- Net weight: 0,4 kg.
- Certifications: CE.
- 2-year warranty
Scope of delivery:
1x Network camera.
1x Power supply unit.
1x 1-meter network cable.
1x VMS Express software.
1x Installation CD.
1x User guide (on CD).
1x Quickstart manual.
1x Wall/ceiling mount (pre-installed) incl. installation material.
|
